Adalit IL.300 - Rechargeable Safety Torch for Ex Zone 1 / 21
with Swivelling Head and Digital Display
Features:
- 2 LEDs of 135 lumens each in a double optic with different light beams (spot and flood)
- LedEngine technology with step light system
- Booster function to illuminate long distances with greater penetrating light beam
- Two button switches of soft touch material, ergonomic and oversized in order to guarantee easy pushing
- 2 different burning intensities in order to select in every moment the remaining burning time
- Battery level indication in hours and minutes by means of a digital display
- Swivelling head with 3 positions 0º | 45º | 90º
- Neodymium magnet with high pull strength (optional)
- Easy maintenance
- Straight or right angle
- Chargers for 1, 2, 3 or 5 torches available
Adalit IL-300 torch is a high performance professional safety torch that combines high intensity LEDs, a revolutionary optic, a large digital display and an elegant design.
| |
| ATEX: |
| II 2G Ex ia IIB T4 Gb |
| II 2D Ex ia IIIC T85ºC Db |
| GAS ZONE 1 | 2 |
| DUST ZONE 21 | 22 |
| |
| Ingress protection: | IP67 |
| Weight: | 500 gr. (included battery) |
| Measures: | Straight: 22,5 cm x 7 cm. Ø |
| Right angle: 18,5 cm x 7 cm. Ø |
| Burning time: | 4 h at high intensity |
| 8 h at low intensity |
| Torch body material: | Thermoplastic resin with high resistance to impacts, |
| extreme temperatures and corrosive substances |
| Light source: | 2 high intensity LEDs with 135 lm. each |
| Battery: | Rechargeable Li-ion battery 3,7 V (IL3R) |
| Low Battery | |
| Warning: | Blinking signal of the main LED 15 min. before |
| running out of battery |
| On/Off switch: | Push button switch of soft touch material, placed on |
| the side to guarantee easy finding and pushing with |
| gloves |
Battery Level Indication:
| The battery level indicator shows the remaining burning time in hours and minutes . |
| |
 |
| |
| Automatic Power: |
| |
 |
| |
| The Adalit IL-300 torch integrates an automatic power device that helps localizing it when charging. |
| When a power failure to the charger occurs or the torch is taken from the charger, the torch switches on automatically remaining in this state up to 4 hours. |
| |
| Functions: |
| |
 |
| |
| Other Functions: |
| |
| Clip (included) for the jacket or belt: |
| |
 |
| |

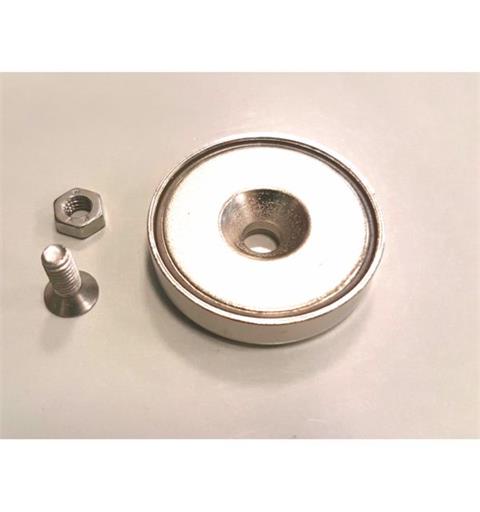

| Magnet with high pull strength (optional accessories): |
| |
 |
| | |
| Chargers: | |
| | |
 |
|
| | |
| Marking: | CE e9 |
| | |
| Ingress Protection: | IP54 |
| | |
| Disconnection at the | |
| end of the charge: | Automatic |
| | |
| Feeding Source: | DC: 12 V. | AC: 100/240V. 50/60 Hz |
| | |

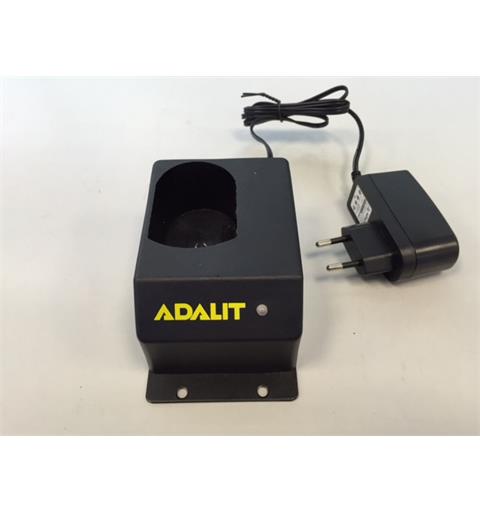

| Types and dimensions: | Single: 75x105x60 mm |
| For 3 torches: 205x105x60 mm |

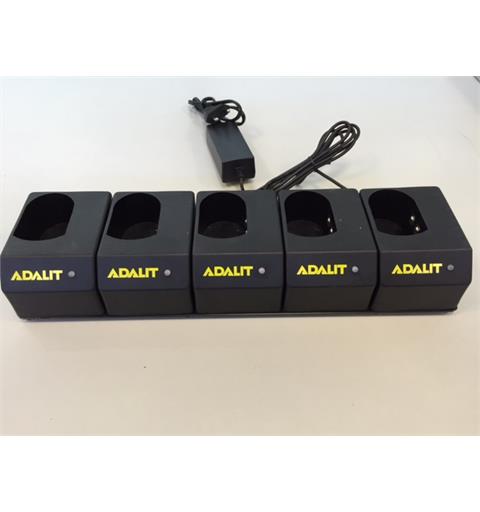

| For 5 torches: 405x105x60 mm |
| | |
