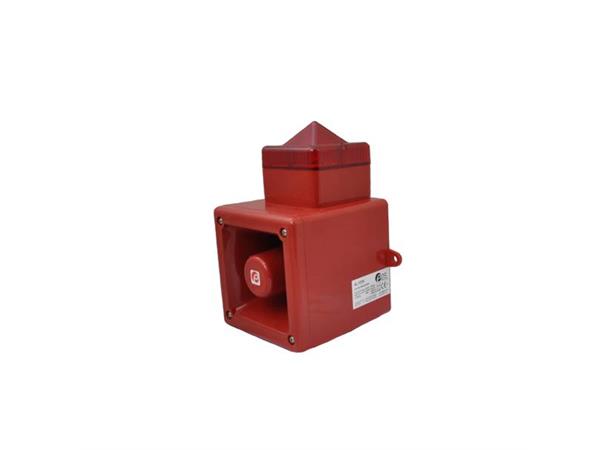

AL105N Alarm Sounder & Beacon
The AL105N is a high outout, 112dB(A) alarm sounder combined with a 5 Joule Xenon beacon. The robust, fire retardant IP56 housing ensures the AL105N is suitable for all general signalling applications including fire, security and process control.
PRODUCT SPECIFICATIONS
Nominal Voltage: 24vAC (10-30vAC)
Current Consumption:
Sounder:
Maximum output: 112dB(A) @ 1 metre
Nominal output: 105dB(A) @ 1m +/- 3dB - Tone 2
No. of tones: 32 (UK00A / PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A); Min: 96dB(A) - Tone 2
Effective range: 60m @ 1KHz
Stage Switching: Negative
Reverse polarity stage switching on DC units.
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 86,953 cd
Effective Intensity cd: 200 cd (Candela measurements representative of performance with clear lens at optimum voltage.)
Lens clours: Amber, Blue, Clear, Green. Opal, Red & Yellow
Tube life: Emissions are reduced to 70 % after 8 million flashes
General:
Ingress protection: IP66
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000)
Cable entries: 2 x M20 clearance gland entries in side & back
Terminals: 0.5 to 1.55mm2 cables
Operating temperature: -25 to +55¤C
Storage temperature: -40 to +70¤C
Relative humidity: 90% at 20¤C
Weight: DC: 0.95kg; AC: 1.20kg
Dimensions: H214 x W130 x D132mm
Available variants:
Housing colour: Red, Grey and White housing,
Voltages: 12Vdc, 24Vdc, 48Vdc, 24Vac, 115Vac, 230 Vac
Lens Colour: Amber, Blue, Clear, Green, Opal, Red & Yellow
