AL105NSONTELFLASH
Telephone Initiated Alarm Sounder & Xenon beacon

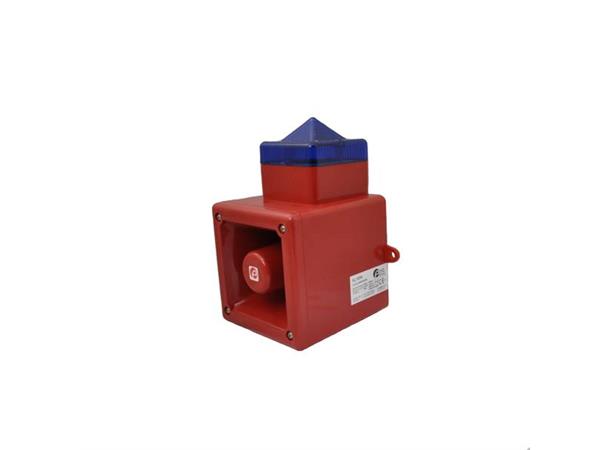

The AL105NSONTELFLASH is a compact, high output, 105dB(A) telephone initiated alarm sounder and 5 Joule Xenon beacon.
Features:
• Continuously rated.
• Stainless steel fixings.
• Unit can be mounted using external lugs or internal BESA compatible fixing positions.
• Tropicalisation available on request.
Approvals:
• GOST-R approved. Cert: POCC GB-JB05-B02228
Specification:
Sounder:
Nominal output: 105dB(A) @ 1m +/- 3dB
No. of tones: 3
Volume control: Max. 105dB(A); Min. 90dB(A)
Effective range: 60m @ 1KHz
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 78,801 cd
Effective Intensity cd: 196 cd*
Lens colours: Amber, Blue, Clear, Green, Opal, Red & Yellow
Tube life: Emissions are reduced to 70% after
8 million flashes
General:
Sounder Supply: Direct power from telephone line (REN 1)
Beacon Supply: 230V ac (telephone initiated)
Ingress protection: IP56
Housing material: High impact UL94 V0 & 5VA FR ABS
Colour: Red (RAL3000), grey (RAL7038) & white.
Cable entries: 2 x M20 clearance gland knockouts
in side & back
Terminals: 0.5 to 2.5mm² cables.
Operating temperature: -25 to +55°C
Storage temperature: -40 to +70°C
Relative humidity: 90% at 20°C.
Weight : 0.95kg
Tones:
Tone 1: Siren Tone
Tone 2: Alternating tone
Tone 3: Sweeping tone
