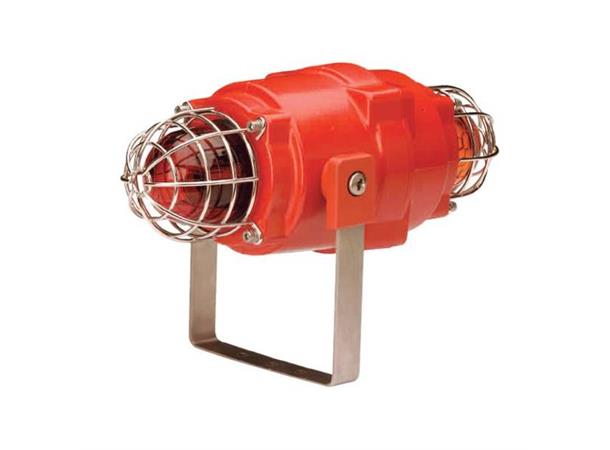

BExCBG05-05 Dual Xenon Beacon (Old type, not IECEx certified)
The flameproof BExCBG05-05 dual xenon beacons are suitable for Zone 1, 2, 21 & 22 applications.
The BExCBG05-05D dual 5 Joule beacons are ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible. The beacons may be connected from a single supply for
simultaneous operation or from separate supplies for independent operation. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. All models have two M20 cable entries, large termination areas and an ingress protection of IP67.
Features:
• Automatic synchronisation on multi-beacon system.
• Beacons can be set to ‘flip-flop’ alternating mode
with other units on multi-beacon systems.
• Xenon tubes mechanically secured against shock & vibration
• Glass lens & Stainless Steel guard
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.
Approvals:
• ATEX certificate:
KEMA 01ATEX2222X,
EN 60079-0 : 2006, EN 60079-1 : 2007,
EN 61241-0 : 2006, EN 61241-1 : 2004
• GOST-R certificate: POCC GB.JB05.B02205
• Inmetro certificate: 10-IEx-0010
