D1xL2F PA Loudspeakers 100V

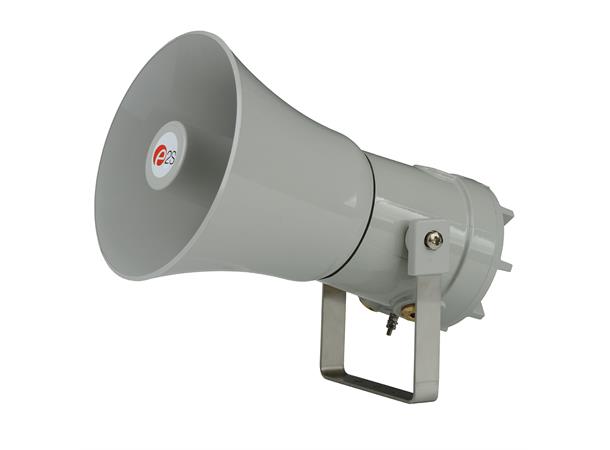

The D1xL2F is a 25W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures the D1xL2F is suitable for all Class I & II Division 1 & Zone 1 & 20 explosion proof applications.
The re-entrant flare horn is high impact, fire retardant ABS and is field replaceable - the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries, and large termination areas. The termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.
Features:
• High output
• Compact form factor
• Multiple transformer tappings
• Field replaceable flare component
• Robust corrosion proof aluminium enclosure
• Ratchet adjustable stainless steel bracket
• Stainless steel fixings
• Triple cable entries
• Duplicate cable terminations
• Threaded cover joint for fast installation
Approvals:
UL File ref: E230764
UL1203 Ed. 5
CAN/CSA C22.2 No. 25-1966
CSA C22.2 No. 30-M1986
CSA C22.2 No. 205-12
UL1480 Ed. 6
Commercial and professional use
CSFM listing: 7136-2279:0504
Coding:
• A1: Gas version
NEC / CEC:
Class I Div 1 ABCD T6 Ta -40°C to +70°C
Class I Div 2 ABCD T6 Ta -40°C to +70°C
Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
• D1: Dust version
NEC / CEC:
Class II Div 1 FG T6 Ta -40°C to +70°C
Class II Div 2 FG T6 Ta -40°C to +70°C
Class III Div 1 & 2
Zone 20, 21, 22 IIIB Ta -40°C to +70°C
• Protection concept: Ex d / AEx d
Specification:
| | |
| SPL (Gas version): | 104dB +/-3dB @ 1W @ 1m (Pink) |
| 118dB +/-3dB @ 25W @ 1m (Rated) |
| SPL (Dust version): | 83dB +/-3dB @ 1W @ 1m (Pink) |
| 97dB +/-3dB @ 25W @ 1m (Rated) |
| Rated power: | 25 Watts RMS |
| 70v line tappings: | 25W/12.5W/6W/2W tappings |
| (z=196 Ohms/392 Ohms/816.67 Ohms/2.45k Ohms) |
| Low impedance: | 8 Ohm or 16 Ohm |
| Directivity Index: | 7.6 @ 1kHz & 17.6 @ 4kHz [dB on-axis] |
| Frequency range: | 300Hz to 8000 Hz |
| DC Line monitoring: | 2.2µF Capacitor (Transformer) |
| 470µF Capacitor (Low impedance) |
| Ingress protection: | EN60529: IP66 |
| UL50E / NEMA250: 4 / 4X / 3R / 13 |
| Enclosure material: | Marine grade aluminium LM6- copper free |
| Chromated & powder coated - corrosion proof |
| Colour: | Red (RAL3000), Grey (RAL7038) |
| Cable entries: | 1 x 1/2"NPT & 2 x M20 x 1.5mm |
| 1 x 1/2"NPT & 2 x 1/2"NPT |
| 1 x 1/2"NPT & 2 x 3/4"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Grounding stud: | M5 |
| Operating temp: | -40° to +70°C [-40° to +158°F] |
| Storage temp: | -50° to +70°C [-58° to +158°F] |
| Relative humidity: | 95% - Additional tropicalisation is recommended |
| for applications where both high relative humidity |
| and high ambient temperatures exist |
| Weight: | 70V line: 4.5kg/9.9Ibs |
| Low imp.: 4.2kg/9.1Ibs |
| | |
Part Codes:
| Version: | Part code: | |
| | |
| Product type: | D1xL2 | |
| Horn type: | F | Flare re-entrant horn |
| | | |
| Type: | V070 | 70V Line Transformer |
| R008 | 8 Ohm Low impedance |
| R016 | 16 Ohm Low impedance |
| | | |
| Cable Entry Type: [e] | A | 1 x 1/2"NPT & 2 x M20 x 1.5mm |
| B | 1 x 1/2"NPT & 2 x 1/2"NPT |
| C | 1 x 1/2"NPT & 2 x 3/4"NPT |
| | | |
| Adaptor/Stopping | B | Brass |
| plug material: [m] | N | Nickel Plated |
| S | Stainless Steel |
| | | |
| Bracket material: [s] | 1 | A2 304 Stainless Steel |
| 2 | A4 316 Stainless Steel |
| 3 | A2 304 St/St with Equip. Tag |
| 4 | A4 316 St/St with Equip. Tag (304) |
| | | |
| Product version: [v] | A1 | Gas environments Class I/Zone1 |
| D1 | Dust environments Class II/Zone 20 |
| | | |
| Enclosure colour: [x] | G | Grey RAL7038 |
| R | Red RAL3000 |
| | | |
| Example: | | D1xL2FR008 [e][m][s][v][x] |
| | D1xL2FR008AB1A1R |
| | | |
| Ratings: | |
| | |
| A1: | Gas version |
| NEC / CEC: | Class I Div 1 ABCD T6 Ta -40°C to +70°C |
| Class I Div 2 ABCD T6 Ta -40°C to +70°C |
| Class I Zone 1 IIC T6 Ta -40°C to +70°C |
| D1: | Dust version |
| NEC / CEC: | Class II Div 1 FG T6 Ta -40°C to +70°C |
| Class II Div 2 FG T6 Ta -40°C to +70°C |
| Class III Div 1&2 |
| Zone 20 IIIB Ta -40°C to +70°C |
| | |
