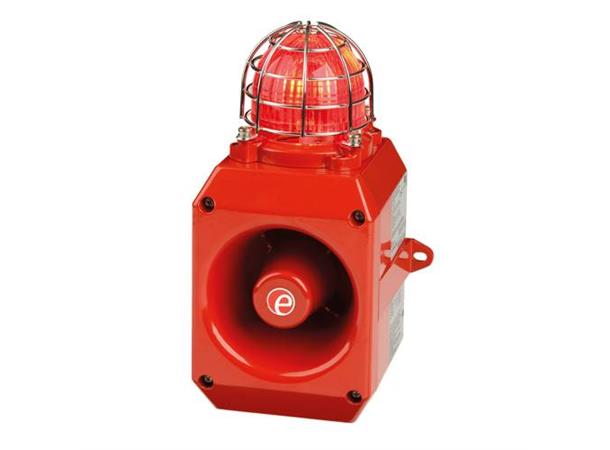

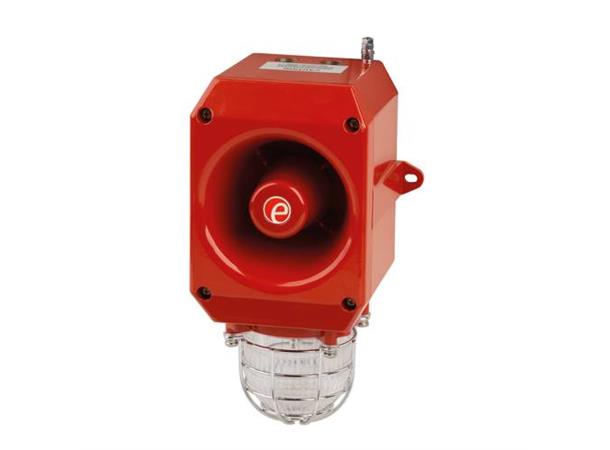

D2xC1X05 Alarm Horn Sounder & Xenon Strobe Beacon
The D2xC1X05 features a high output, 116dB(A) alarm horn sounder combined with a 5 Joule Xenon strobe beacon.
Low current consumption and high SPL in a robust Type 4/4X, IP66 enclosure ensure the D2xC1X05 is suitable for all haz loc fire alarm system and general signalling applications.
The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of hazardous location environments.
One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2.
UL & cUL approved 24Vdc version for fire alarm use.
Features:
• One device, globally certified
• 5 Joule Xenon beacon with 116dB(A) alarm horn
• 64 alarm tones, 4 remotely selectable alarm stages/channels
• Automatic synchronisation on multi-sounder system
• Field changeable lens colours
Approvals:
UL File ref: E230764
ANSI/ISA 12.12.01 – 2013
CSA C22.2 No. 213-M1987
ANSI/UL60079-0-13
ANSI/UL60079-15-2013
ISA60079-31-2009
CAN/CSA C22.2 No. 60079-0-11
CAN/CSA C22.2 No. 60079-15-12
CAN/CSA C22.2 No. 60079-31-12
IECEx cert: IECEx ULD 14.0004X
IEC60079-0: ed. 6.0 (2011-06)
IEC60079-15: ed. 4.0 (2010-01)
IEC60031-31: ed. 2.0 (2013-11)
ATEX cert: DEMKO 14 ATEX 4786493904X
EN60079-0:2012
EN60079-15:2010
EN60079-31:2009
Coding:
| NEC / CEC: | Class I Div 2 ABCD T2B Ta -40°C to +70°C |
| Class I Div 2 ABCD T2C Ta -40°C to +55°C |
| Class I Div 2 ABCD T2D Ta -40°C to +40°C |
| Class II Div 2 FG T5 Ta -40°C to +50°C |
| Class III Div 1&2 Ta -40°C to +50°C |
| | |
| NEC: | Class I Zone 2 AEx nA IIC T2 Gc (Ta -40°C to +50°C) |
| Zone 22 AEx tc IIIC 120°C Dc (Ta -40°C to +50°C) |
| | |
| CEC: | Class I Zone 2 Ex nA IIC T2B Gc X |
| (Ta -40°C to +50°C) |
| Class I Zone 2 Ex nA IIC T2C Gc X |
| (Ta -40°C to +45°C) |
| Zone 22 Ex tc IIIC 120°C Dc (Ta -40°C to +50°C) |
| Class II Div 2 EFG T4A Ta -40°C to +50°C |
| | |
| IECEx & ATEX: | II 3G Ex nA IIC T2 Gc (Ta -40°C to +50°C) |
| II 3D Ex tc IIIC 90°C Dc (Ta -40°C to +50°C) |
Specification:
| Sounder/Horn: | |
| Maximum output: | 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m] |
| Nominal output: | 112dB(A) @ 1m +/- 3dB |
| - Tone 2 [103dB(A) @ 10ft/3m] |
| No. of tones: | 64 (UKOOA / PFEER compliant) |
| No. of stages: | 4 |
| Volume control: | Adjustable -12dB(A) [Tone 2] |
| Effective range: | 125m/410ft @ 1KHz |
| Stage switching: | |
| DC units - | Positive or Negative line |
| AC units - | Common supply line |
| | |
| Beacon: | |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Eff. Intensity cd: | 250 cd - calculated from energy (J) |
| Peak Candela: | 33,410 cd - measured ref. to I.E.S. |
| Eff. Intensity cd: | 94.78 cd - measured ref. to I.E.S. |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Tube life: | Emissions are reduced to 70% after 8 million flashes |
| | |
| General: | |
| Voltages DC: | 24vDC [20-28vDC]; 48vDC [38-58vDC] |
| Voltages AC: | 115vAC 50/60Hz; 230vAC 50/60Hz |
| Ingress protection: | EN60529: IP66 |
| UL50E / NEMA250: 4 / 4X / 3R / 13 |
| Enclosure matl: | Marine grade aluminium Al Si12 Cu |
| Colour: | Red (RAL3000), Grey (RAL7038) |
| Cable entries: | 2 x M20 x 1.5mm threaded gland entries |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Grounding stud: | M5 |
| Operating temp: | -40 to +70°C [-40° to +158°F] - Class I Div 2 |
| -40 to +50°C [-40° to +122°F] - All other approvals |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | DC: 2.80kg/6.16Ibs AC:3.10kg/6.82Ibs |
*All candela data is representative of performance with clear lens at optimum voltage.
SPL data +/-3dB(A)
Part Codes: D2xC1X05 [u] [e] [m] [s] [v] [x] . [y]
| | [v]: Product version (A1) is not |
| | included in the Part Code |
| | because of space limitations, |
| | and as this is the only option. |
| | | |
| Version: | Part code: | |
| | | |
| Product type: | D2xC1X05 | Hazardious Location alarm horn |
| | sounder & Xenon strobe beacon |
| | | |
| Voltage: [u] | DC024 | 24vDC - UL/cUL Fire Alarm |
| DC048 | 48vDC |
| AC115 | 115vAC |
| AC230 | 230vAC |
| | | |
| Cable Entry Type: [e] | A | 2 x M20x1.5mm (Standard) |
| B | 2 x 1/2" NPT - adaptors |
| C | 2 x 3/4" NPT - adaptors |
| D | 2 x M25x1.5mm - adaptors |
| E | 1 x 1/2" NPT - adaptor |
| F | 1 x 3/4" NPT - adaptor |
| G | 1 x M25x1.5mm - adaptor |
| Note: | M20 stopping plugs for unused |
| | entries supplied with all options |
| | | |
| Adaptor/Stopping | B | Brass (Standard) |
| plug material: [m] | N | Nickel Plated |
| S | Stainless Steel |
| | | |
| Lens Guard | 1 | A2 304 Stainless Steel (Standard) |
| material: [s] | 2 | A4 316 Stainless Steel |
| | | |
| Product version: [v] | A1 | UL, cUL, IECEx & ATEX |
| | (A1 is not included in the Part Code |
| | because of space limitations, and |
| | as this is the only option) |
| | | |
| Enclosure colour: [x] | R | Red RAL3000 (Standard) |
| S | Special - contact us! |
| | | |
| Lens colour: .[y] | .1 | R Red |
| .2 | A Amber (Orange) |
| .3 | Y Yellow |
| .4 | G Green |
| .5 | B Blue |
| .7 | C Clear (Transparent) |
| .8 | M Magenta |
| Example part code: | D2xC1X05 [u] [e] [m] [s] [x] . [y] |
| D2xC1X05 DC024 A B 1 R . 1 |
| | |
| Explanation of the above: | |
| Product type: | "D2xC1X05" Hazardious Location alarm horn |
| sounder & Xenon strobe beacon |
| Voltage: [u] | "DC024" = 24vDC |
| Cable Entry: [e] | "A" = 2 x M20x1.5mm |
| Stopping plug: [m] | "B" = Brass (Standard) |
| Guard material: [s] | "1" = A2 304 Stainless Steel (Standard) |
| Enclosure colour: [x] | "R" = Red RAL3000 (Standard) |
| Lens colour: .[y] | ."1" = (R) Red Lens colour |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.23 | 0.70 | 0.93 | 0.25 | 0.24 | 1.00 |
| Alarm- | Sounder | Xenon- | Beacon |
| | | | | |
| Version: | Voltage: | Current: | Voltage: | Current: |
| | | | | |
| 24vDC | 10-30vDC | 313mA | 20-28vDC | 250mA |
| 48vDC | 38-58vDC | 181mA | 42-54vDC | 149mA |
| 115vAC | +/-10% | 90mA | +/-10% | 70mA |
| 230vAC | +/-10% | 52mA | +/-10% | 35mA |
