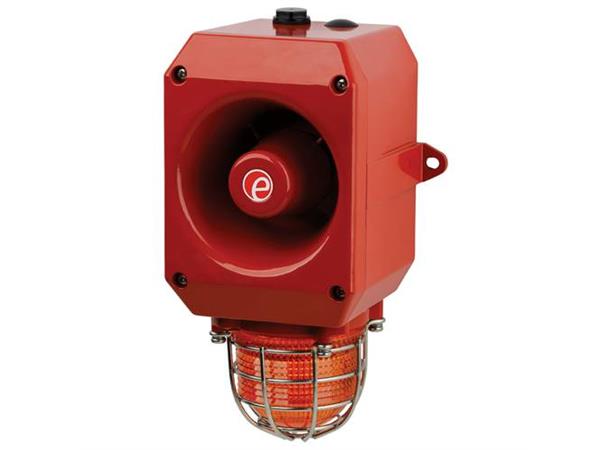

DL112X Alarm Sounder & Xenon Beacon
The DL112X is a high output, 119dB(A) alarm sounder with integrated Xenon beacon.
Low current consumption and high SPL in a robust IP66 housing ensure the DL112X is suitable for all general signalling applications including fire, security and process control. The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilence in the harshest of industrial environments.
Specification
Sounder:
Maximum output: 119dB(A) @ 1 metre [110dB(A) @ 10ft/3m]
Nominal output: 112dB(A) @ 1m +/- 3dB - Tone 2 [103dB(A) @ 10ft/3m]
No. of tones: 45 (UKOOA / PFEER compliant)
No. of stages: 3
Volume control: Max. 112dB(A); Min. 100dB(A) - Tone 2
Effective range: 125m/410ft @ 1KHz
Stage switching: Negative
Reverse polarity stage switching on DC units.
Beacon:
Energy: 5 Joules (5Ws)
Flash rate: 1Hz (60 fpm)
Peak Candela: 500,000 cd - calculated from energy (J)
Effective Intensity cd: 250 cd - calculated from energy (J)
Peak Candela: 86,935 cd* - measured ref. to I.E.S.
Effective Intensity cd: 200 cd* - measured ref. to I.E.S.
Lens colours: Amber, Blue, Clear, Green, Red & Yellow
Tube life: Emissions are reduced to 70% after 8 million flashes
General:
Voltages DC: 12Vdc; 24V dc; 48V dc [24V dc units can use 24V ac for single stage applications].
Voltages AC: 24V ac; 115V ac; 230V ac
Ingress protection: IP66, Type 4 / 4X / 3R
Housing material: Marine grade aluminium A1 Si12 Cu
Colour: Red (RAL3000), grey (RAL7038)
Cable entries: 2 x M20 x 1.5mm threaded gland entries supplied with one stoppoing plug
Terminals: 0.5 to 4.0mm² cables.
Operating temp: -25 to +55°C [-13° to +131°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 90% at 20°C [68°F]
Weight: DC: 2.80kg/6.16Ibs AC:3.10kg/6.82Ibs
*Candela measurements representative of performance with clear lens at optimum voltage.
*SPL data +/-3dB(A). Measured at optimum voltage.
Part Codes
Version: Part code:
12V dc DL112XDC012[x]/[y]
24V dc DL112XDC024[x]/[y]
48V dc DL112XDC048[x]/[y]
24V ac DL112XAC024[x]/[y]
115V ac DL112XAC115[x]/[y]
230V ac DL112XAC230[x]/[y]
[x] = Housing colour: G: Grey R: Red
[y] - Lens colour: A: Amber, B: Blue, C: Clear, G: Green, R: Red, Y: Yellow
Suffix part number with ‘-P’ for programmable, 4 stage, 45 tone version (not available with UL approval).
Suffix part number with ‘-UL’ for UL approved version.
Alarm sounder
Version: Voltage: Current:
12V dc ? 10-30V dc 200mA*
24V dc ? 10-30V dc 200mA*
48V dc ? 35-60V dc 120mA*
24V ac 50/60Hz +/-10% 500mA
115V ac 50/60Hz +/-10% 100mA
230V ac 50/60Hz +/-10% 60mA
* current at nominal voltage on Tone 2
Xenon beacon
Version: Voltage: Current:
12V dc 10-14V dc 380mA
24V dc 20-28V dc 250mA
48V dc 42-54V dc 175mA
24V ac 50/60Hz +/-10% 300mA
115V ac 50/60Hz +/-10% 70mA
230V ac 50/60Hz +/-10% 35mA
