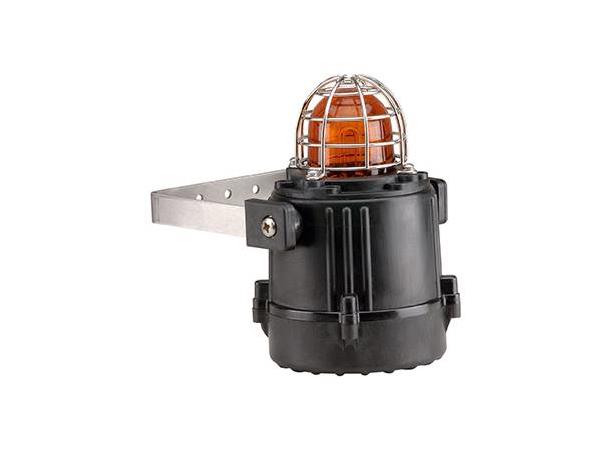

E2xB05 Xenon Strobe 5 Joule
The hazardous area E2xB05 Xenon strobe beacon is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
The E2xB05 is a 5 Joule Xenon strobe beacon with a 1Hz (60 fpm) flash rate.
The E2x range features enclosures manufactured from lightweight, high performance PPS which, with its corrosion proof properties, is suitable for the harshest of environments.
Features:
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.
• Stainless Steel dome guard as standard
• Xenon tube mechanically secured against vibration & shock.
• User replaceable Xenon tube assembly.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalisation available on request.
| Approvals: | |
| | |
| ATEX certificate: | DEMKO 06 ATEX 0421554X |
| | |
| IECEx certficate: | IECEx ULD 14.0012X |
| | |
| UL/cUL File ref: | E245313 |
| Specification: | |
| | |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Effective Intensity cd: | 250 cd - calculated from energy (J) |
| Peak Candela: | 34,122 cd* - measured ref. to I.E.S. |
| Effective Intensity cd: | 108 cd* - measured ref. to I.E.S. |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear |
| & Magenta |
| Voltages DC: | 12vDC; 24vDC; 48vDC |
| Voltages AC: | 115vAC; 230vAC |
| Ingress protection: | IP rating per EN60079-0:IP64 |
| IP rating per EN60529:IP66 |
| Type rating per UL50E/NEMA250:4/4X/13 |
| Enclosure material: | UL94V0 PPS & ABS |
| Lens material: | Borosilicate glass dome with PC |
| prismatic lens cover. |
| Guard: | Stainless Steel dome guard as standard |
| Cable entries: | Dual M20x1.5 or 1/2"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included |
| EOL can be factory fitted |
| Operating temp: | -20 to +55°C [-4° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 1.48kg / 3.25Ibs |
* All candela data is representative of performance with clear lens at optimum voltage.
Current Consumption:
| Version: | | Voltage: | Current: |
| 12vDC | | 10-14vDC | 520mA |
| 24vDC | | 20-28vDC | 275mA |
| 48vDC | | 42-58vDC | 145mA |
| 115vAC | 50/60Hz | +/-10% | 80mA |
| 230vAC | 50/60Hz | +/-10% | 30mA |
Part Codes:
| Part Code: | Ident.: | Description: |
| | | |
| Product type: | E2xB05 | Xenon Strobe Beacon |
| | | |
| Voltage: [u] | DC012 | 12vDC |
| DC024 | 24vDC |
| DC048 | 48vDC |
| AC115 | 115vAC 50/60Hz |
| AC230 | 230vAC 50/60Hz |
| | | |
| Cable entries: [e] | A | M20x1.5 & ½” NPT |
| B | M20x1.5 & M20x1.5 (Standard) |
| C | ½” NPT & ½” NPT |
| | | |
| Stopp. plug matr.:[m] | N | Nylon (Standard) |
| | | |
| Bracket & Guard: [s] | 1 | 304 (A2) Stainless Steel (Standard) |
| 2 | 316 (A4) Stainless Steel |
| | | |
| Approvals: [v] | A1 | UL, cULs, IECEx & ATEX (Standard) |
| | | |
| Enclosure: [x] | B | Black (Standard) |
| | | |
| Lens colour: /[y] | R | Red |
| A | Amber (Orange) |
| Y | Yellow |
| G | Green |
| B | Blue |
| C | Clear (Transparent) |
| M | Magenta |
| Example part code: | E2xB05 [u] [e] [m] [s] [v] [x] / [y] |
| E2xB05 DC024 B N 1 A1 B / R |
| Explanation of the above: | |
| Product type: | "E2xB05" |
| Voltage: [u] | "DC024" = 24vDC (20-28vDC) |
| Cable Entry: [e] | "B" = M20x1.5 & M20x1.5 |
| Stopp. plug matr.:[m] | "N" = Nylon |
| Bracket & Guard: [s] | "1" = 304 (A2) Stainless Steel Bracket & Guard |
| Approvals: [v] | "A1" = UL, cULs, IECEx & ATEX |
| Enclosure colour: [x] | "B" = Black Enclosure colour |
| Lens colour: /[y] | /"R" = Red Lens colour |
Also available as the E2xC1X05 combined alarm sounder and Xenon beacon and the E2xC1LD2 combined alarm sounder and LED beacon.
| Coding: |
| |
ATEX / IECEx certification:
II 3G Ex nA IIC T3 Gc Ta -20°C to +40°C
II 3G Ex nA IIC T2 Gc Ta -20°C to +55°C
II 3D Ex tc IIIC 85°C Dc Ta -20°C to +40°C
II 3D Ex tc IIIC 100°C Dc Ta -20°C to +55°C
NEC Class / Zone ratings US:
Class I Zone 2 AEx nA IIC T3 Gc Ta -20°C to +40°C
Class I Zone 2 AEx nA IIC T2 Gc Ta -20°C to +55°C
Zone 22 AEx tc IIIC 85°C Dc Ta -20°C to +40°C
Zone 22 AEx tc IIIC 100°C Dc Ta -20°C to +55°C
CEC Class / Zone ratings Canada:
Class I Zone 2 Ex nA IIC T3 Gc Ta -20°C to +40°C
Class I Zone 2 Ex nA IIC T2 Gc Ta -20°C to +55°C Zone 22 Ex tc IIIC 85°C Dc Ta -20°C to +40°C
Zone 22 Ex tc IIIC 100°C Dc Ta -20°C to +55°C
NEC & CEC Class / Division Ratings for US / Canada:
Class I, Div 2, ABCD T2D Ta -20°C to +55°C
Class I, Div 2, ABCD T3 Ta -20°C to +55°C
Class II, Div 2, FG T5 Ta -20°C to +55°C
Class II, Div 2, FG T6 Ta -20°C to +40°C
Class III, Div 1&2 Ta -20°C to +55°C |
