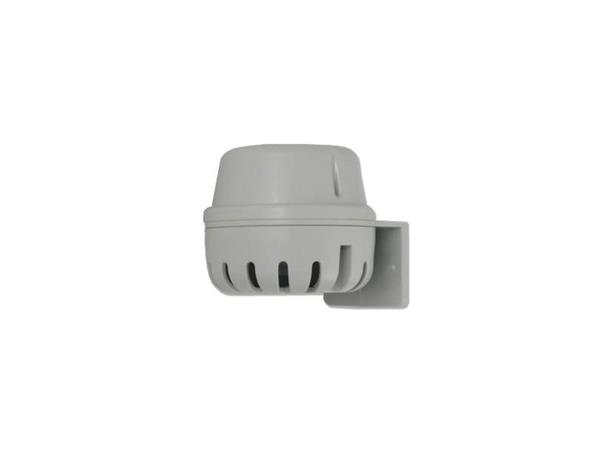

H100B Signalling Horn
The H100 series contains two variants of signalling horn, the H100T with trumpet horn and the compact H100B without trumpet horn. Both electronic signals authentically reproduce the alert sound of traditional electro-mechanical units but without any of the reliability issus.
Rated for continuos use, the H100 series is a compact, high output signal suitable for a variety of installation types.
In addition to the "buzzer" type sound the unit features a further two alarm sounds.
PRODUCT SPECIFICATIONS:
Nominal Voltage: 40-260V AC/DC
No. og tones: 3
Output: 100 db(A) @ 1m
Mounting: Surface mount
Entries: 1 x 5-7mm push through grommet
Dimensions: 79.5 x 94.2mm
Ingress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Terminals: 0.5 to 1.5mm2
Operating tempature: -25 to +50¤C
Storage tempature: -40 to +70¤C
Relative humidity: 90% at 20¤C
Weight: 118g
FEATURES:
- Volume control
- Stainless steel fixings
AVAILABLE VERSIONS:
10-30V AC/DC
40-260V AC/DC
