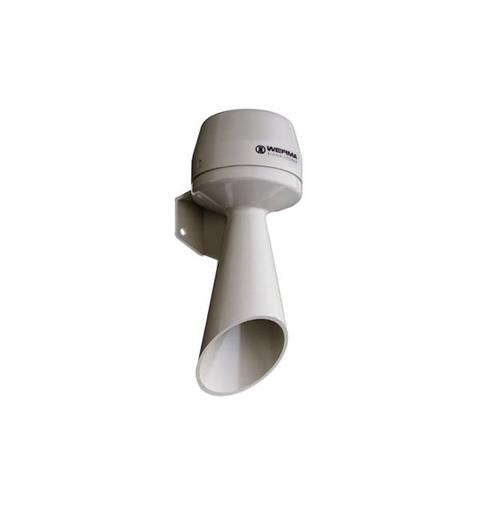

H100T Signalling Horn with trumpet
The H100 series contains two variants of signalling horn, the H100T with trumpet horn and the compact H100B without trumpet horn. Both electronic signals authentically reproduce the alert sound of traditional electro-mechanical units but without any of the reliability issues.
Rated for continuous use the H100 series is a compact, high outout signal suitable for a variety of instakkations.
In addition to the "buzzer" type sound the unit features a further two alarm sounds.
PRODUCT SPECIFICATIONS:
Nominal voltage: 40-260VDC/AC
No. of tones: 3
Output: 100 db(A) @ 1m
Mounting: Surface mount
Entries: 1 x 5-7mm push through grommet
Dimensions: 177.5 x 94.2mm
Ingress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Terminals: 0.5 to 1.5 mm2
Operating temperature: -25 to +50¤C
Storage temperature: -40 to +70¤C
Relative humidity: 90% at 20¤C
Weight: 148g
FEATURES:
-Volume control
- Stainless steel fixings
AVAILABLE VERSIONS:
- 10-30 V AC/DC
- 40-260V AC/DC
