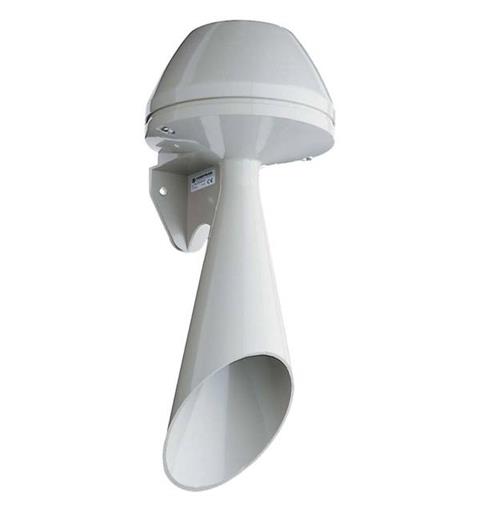

H110T Signalling Horn with Trumpet
The H110T is a very high output electronic signal horn capable of generating a traditional "buzzer" warning tone traditionally associated with electromechanical signals.
With an output of 110dB(A) the H110T is deal for all general signalling applications and the ingress protection rating of IP65 means it is suitable for inddor and outdoor installations.
In addition to the "buzzer" type sound the unit features a further two alarm tones. .The first stage sound also have a remotely selectable second stage.
PRODUCT SPECIFIACTIONS:
Nominal voltage: 24vDC/AC - 10-30VDC/AC
No. of tones: 3
Output: 110 dB(A) @ 1m
Stages: Remotely selctable second stage
Mounting: Surface mount
Entries: 1 x 5-7mm push through grommet
Dimensions: 336.7 x 135 mm
Ingress protection: IP65
Housing material: High impact ABS (UL94V0 & 5VA)
Terminals: 0.5 to 1.5mm2
Operating tempature: -25 to +50¤C
Storage tempature: -40 to +70¤C
Relative humidity: 90% at 20¤C
Weight: 341g
FEATURES:
- Volume control
- Stainless steel fixings.
AVAILABLE VERSIONS:
- 10-30V AC/DC
- 40-260V AC/DC
