HMA121 Electronic Siren, Buzzer, Claxon & Bell
Applications and users that have traditionally demanded conventional electromechanical claxons, sirens, buzzers and bells can now choose the next generation alternative.
The technology employed in the Hootronic range features the latest in amplifier and digital to analogue conversion technology. The E2S Hootronic series of products faithfully reproduce the sounds made by legacy electro-mechanical signalling devices but in a modern, reliable and cost effective way.
With output levels of up to 124dB(A) at 1 metre the HMA121 surpasses legacy electro-mechanical devices in performance and effectiveness, it is also continuously rated, requires zero maintenance and the signal quality will not degrade with age.
Features:
The products in the Hootronic range have 5 user selectable ‘traditional’ sounds including:
• Tone 1 : Industrial Claxon
• Tone 2 : High Frequency Mechanical Siren
• Tone 3 : Medium Frequency Mechanical Siren
• Tone 4 : Electro Mechanical Buzzer
• Tone 5 : Mechanical Bell
Each of these sounds have two additional, remotely selectable, alarm stages.
Remote switch generates genuine ‘tail off’ to sound when alarm is terminated.
• Automatic synchronisation on multi-sounder system.
• Continuously rated.
• Stainless steel fixings.
• Unit can be mounted using external lugs or internal BESA compatible fixing positions.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalisation available on request.
Approvals:
GOST-R certificate: POCC GB.JB05. H00144
Specification:
| Nominal output: | 124dB(A) @ 1m +/- 3dB |
| [115dB(A) @ 10ft/3m] |
| No. of tones: | 5 |
| No. of stages: | 3 |
| Volume control: | Max. 124dB(A) |
| Min. 115dB(A) approx. |
| Effective range: | 300m/984ft @ 1KHz |
| Voltages DC: | 24vDC (10-30vDC) |
| Voltages AC: | 115vAC; 230vAC |
| Ingress protection: | IP66 & IP67 (Third party tested) |
| Housing material: | High impact UL94 V0 & 5VA FR ABS |
| Colour: | Grey (RAL7038) |
| Cable entries: | 2 x M20 supplied with 1 blanking plug |
| Terminals: | 0.5 to 4.0mm² cables. |
| Operating temp: | -25 to +55°C [-13° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | DC: 2.50kg/5.5Ibs AC:3.00kg/6.6Ibs |
Part Codes:
| Version: | Part code: | Horn Type: | Colour: |
| | | | |
| 24vDC | HMA121 DC24 G | Flare Horn | [grey] |

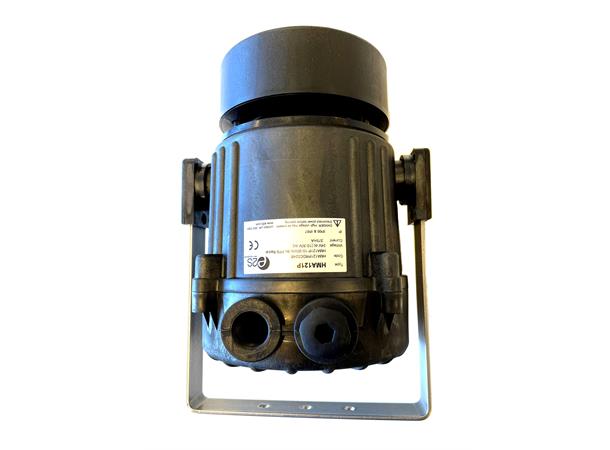

| 24vDC | HMA121 R DC24 BG | Radial Horn | [black] |
| 115vAC | HMA121 AC115 G | Flare Horn | [grey] |
| 115vAC | HMA121 R AC115 BG | Radial Horn | [black] |
| 230vAC | HMA121 AC230 G | Flare Horn | [grey] |
| 230vAC | HMA121 R AC230 BG | Radial Horn | [black] |
Current Consumption:
| Version: | | Voltage Range: | Current: |
| | | | |
| 24vDC | | 10-30vDC | 375mA* |
| 115vAC | 50/60Hz | +/-10% | 160mA |
| 230vAC | 50/60Hz | +/-10% | 75mA |
* current at nominal voltage
Tone Table:
| Stage 1 | WAV file | Frequency Description | Stg 2 | Stg 3 |
| | | | | |
| T 1 | | Industrial Claxon | T 3 | T 5 |
| T 2 | | High Frequency Mechanical Siren | T 1 | T 5 |
| T 3 | | Medium Frequency Mechanical Siren | T 1 | T 5 |
| T 4 | | Electro Mechanical Buzzer | T 2 | T 5 |
| T 5 | | Mechanical Bell | T 1 | T 2 |
Country specific or custom tone configurations and alarm frequencies are available upon request.
