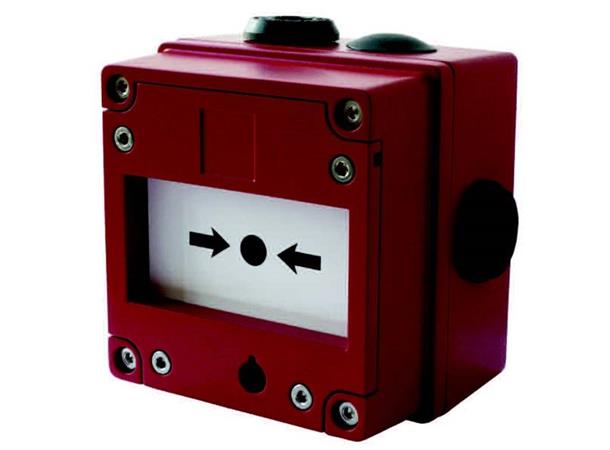

IS-CP4A/B-BG Break Glass Call Point
The IS-CP4A-BG and IS-CP4B-BG break glass manual call points are approved for Zones 0, 1, 2, 21 & 22 requiring intrinsically safe equipment for the control of fire and gas alarm systems. Available with and without monitoring resistors
all versions are certified to ATEX and IECEx standards.
The IS-CP4 range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413)
aluminium which is phosphated and powder coated.
Options:
• Alternative housing colours are available to meet
specific requirements.
• DIN rail mounted terminal blocks: 8 x 2.5mm²
• Stainless Steel lift flap
• Metalised Polyester Duty label.
• Series and/or End of Line resistors.
Approvals:
• ATEX certificate: SIRA 09ATEX2287X,
IEC 60079-0:2007 Ed 5, EN 60079-11:2007,
EN 60079-26:2007,
EN 61241-1:2004
• IECEx certificate: IECEx SIR 09.0122X,
IEC 60079-0:2007-10 Edition: 5,
IEC 60079-11:2006 Edition: 5,
IEC 60079-26:2006 Edition: 2,
IEC 61241-1:2004 Edition: 1
