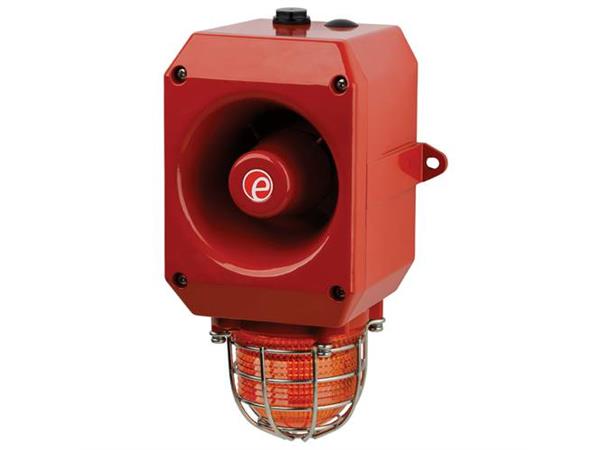

IS-DL105L Intrinsically Safe Alarm Sounder & LED Beacon
The IS-DL105 unit is an intrinsically safe field mounting combined alarm horn with L.E.D. beacon/light which provides a a loud audible and bright flashing visual signal utilising a common zener barrier or galvanic isolator.
The alarm horn features an alarm accept function - by closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again.
Certified for use in application requiring Ex ia equipment to ATEX & IECEx the IS-DL105 is a globally accepted solution to fire or process control signalling.
| Features: |
| |
| • Input overload and reverse current protection |
| • Prismatic lens optimises L.E.D effectiveness |
| • Marine grade aluminium enclosure |
| • Auto synchronised sound output |
| • External mounting lugs |
| • Duplicate cable terminations (in & out for daisy-chain installations) |
| • Available with custom tone configurations and frequencies |
| |
| Approvals: |
| |
| ATEX certificate: SIRA 04ATEX2301X, |
| ATEX certificate: SIRA 04ATEX2302X, |
| EN 60079-0 : 2012,EN 60079-11 : 2012, |
| IEC 60079-26 : 2014 |
| |
| IECEx certificate: IECEx SIR 04.0038X, |
| IECEx certificate: IECEx SIR 04.0039X, |
| IEC 60079-0 : 2011, IEC 60079-11 : 2011, |
| IEC 60079-26 : 2014 |
| |
| Specification: | |
| | |
| Sounder/Horn: | |
| | |
| Nominal output: | 105dB(A) @ 1m +/- 3dB - Tone 2 |
| [96dB(A) @ 10ft/3m] |
| No. of tones: | 49 (UKOOA/PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 105dB(A); Min. 96dB(A) - Tone 2 |
| Effective range: | 60m/197ft @ 1KHz |
| | |
| Beacon/light: | |
| | |
| Light source: | Array of 6 high intensity L.E.D’s |
| L.E.D. colours: | Red, Amber, Blue & Green |
| Standalone mode: | 2Hz (2 double flashes per second) |
| Flash rate: | On : 1 Hz (1 double flash per second) Silenced: 2 Hz |
| (2 double flashes per second) (alarm accepted) |
| | |
| General: | |
| | |
| Voltage: | 16-28vdc via Zener barrier or galvanic isolator |
| Current: | 25mA typical when powered from 24v |
| supply via 28v 300 Ohm Zener barrier |
| Ingress protection: | IP66 |
| Rating: | Continuous |
| Enclosure matl: | A1-Si12 Marine Grade Aluminium |
| Enclosure colour: | Red (RAL3000), Grey (RAL7038) |
| Fixings: | Stainless Steel |
| Cable entries: | 2 x M20 |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Operating temp: | -40° to +60°C [-40° to +140°F] |
| Storage temp: | -40° to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 2.10kg/4.62Ibs |
| |
| Part Codes: |
| |
| IS-DL105-[x]/[y] |
| ATEX / IECEx |
| II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C) |
| |
| [x] : Enxclosure colour: R: Red, G: Grey |
| [y] : LED colour R: Red, A: Amber, B: Blue, G: Green |
| |
| May be powered from any certified Zener barrier or galvanic isolator |
| whose output parameters do not exceed : |
| Uo : 28VDC Io : 93mA Po : 1.2W |
| |
