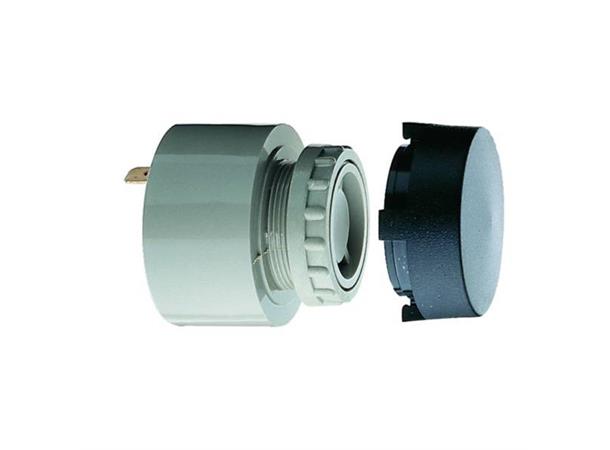

Kit: IS-pA1 Panel Mount Sounder - with Dust CAP
Intrinsically Safe Panel Mount Sounder
The IS-pA1 is a compact, panel mount 100dB(A) alarm sounder.
Producing a high frequency continuous tone, the IS-pA1 can be pulsed to produce different sounds. Utilising the supplied threaded lock nut the IS-pA1 mounts into a 28mm hole - ideal for applications in control panels where a fault indication or other process alarm is required.
Features:
• Input overload and reverse current protection.
Approvals:
• ATEX certi?cate: SIRA 10ATEX2137X,
EN 60079-0 : 2009, EN 60079-11 : 2007,
EN 60079-26 : 2007
• IECEx certi?cate: IECEx SIR 10.0073X,
IEC 60079-0 : 2007,IEC 60079-11 : 2006,
IEC 60079-26 : 2006
Product Specifications:
Nominal Output: 89.6dB(A) @ 1m +/- 3dB
Number of Tones: 1 - Continuous Tone
Frequency: 2600Hz
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Current: 12mA typical when powered from 24v supply Zener barrier
Ingress Protection: IP66
Rating: Continuous
Housing Material: UL94 VO & 5VA FR ABS
Housing Colour: RAL7038 Grey
Mounting: Panel mount - 28.5mm
