MA2H Alarm Horn Sounder IP66/67 Type 4/4X/13

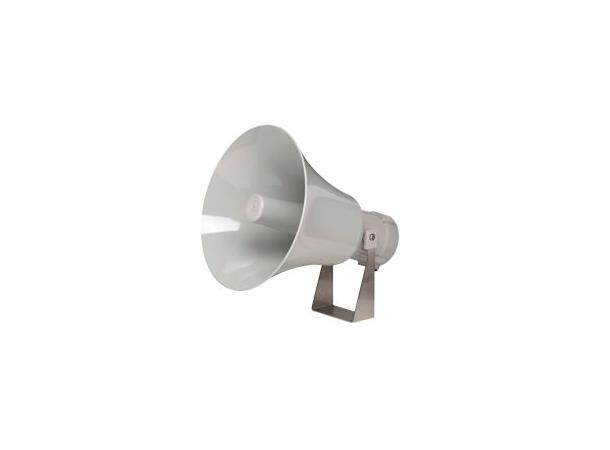

The MA2H is a very high output, 129dB(A) alarm horn sounder. Featuring a robust, fire retardant, IP66 and IP67 Type 4/4X/13 enclosure. Utilising the new E2S ‘2H’ super high output flare horn – engineered to maximise audible signaling performance.
Description
The ‘M’ series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets. The MA2H features a enhanced flare horn design achieving a very high level of sound output. Employing the latest in reliable D Class amplifier technology the MA2H maintains low in-rush and, current consumption and wide input voltage range. Two user selectable power settings provide the optimum combination of sound level output and current consumption.
Features
• Ingress protection IP66/67 Type 4/4X/13
• Automatic synchronisation on multi-sounder systems
• Dual user-selectable sound output power modes
• Continuously rated
• Large termination area
• Dual M20 or 1/2"NPT cable entries – adaptors available
• 316 (A4) Stainless steel mounting bracket
• Ratchet adjustable ‘U’ bracket for 360° positioning
• Duplicate pluggable cable terminations
• Conformal coated (tropicalised) electronics
• 64 alarm tone frequencies and 4 remotely activated alarm stages
• Positive or negative stage activation switching
• Alternative activation configurations available
• Available with custom tone configurations and frequencies
Specification
| Maximum output: | Default power level: 129dB(A) @ 1 m +/- 3dB |
| [120dB(A) @ 10ft/3m +/- 3dB] |
| | Lower power level: 126dB(A) @ 1 m +/- 3dB |
| [117dB(A) @ 10ft/3m +/- 3dB] |
| | |
| Nominal output: | Default power level: 125dB(A) @ 1m +/- 3dB |
| [116dB(A) @ 10ft/3m] +/- 3dB |
| | Lower power level: 123dB(A) @ 1m +/- 3dB |
| [114dB(A) @ 10ft/3m] +/- 3dB |
| | |
| No. of tones: | 64 (UKOOA / PFEER compliant) |
| | |
| No. of stages: | 4 |
| | |
| Volume control: | Full range control |
| | |
| Effective range: | Default power level: 624m/2047ft @ 1KHz |
| Lower power level: 422m/1384ft @ 1KHz |
| | |
| Voltages DC: | 10-60vDC |
| High voltage DC option available |
| | |
| Voltages AC: | 100-240vAC |
| | |
| In rush: | 815mA within 4.0ms @ 24Vdc |
| | |
| Stage switching: | Negative, positive, voltage free |
| | |
| Line monitoring: | Diode polarized for use in supervised circuits |
| |
| Ingress protection: | IP66 & IP67 Type 4/4X/13 |
| | |
| Enclosure matl: | High impact UL94 V0 & 5VA FR ABS |
| | |
| Colour: | Grey (RAL7038) or Red (RAL3000 |
| | |
| Cable entries: | 2 x M20; 1 x M20 & 1 × 1/2"NPT; 2 × 1/2"NPT |
| supplied with blanking plug |
| | |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| | |
| Operating temp: | -40 to +66°C [-40° to +151°F] |
| | |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| | |
| Relative humidity: | 95% at 20°C [68°F] |
| | |
| MTBF: | DC: 93.92 years / 822,706 hours – MIL 217 |
| AC: 149.81 years / 1,312,335 hours – MIL 217 |
| | |
| Weight: | DC: 3.00kg/6.6Ibs AC:3.50kg/7.7Ibs |
Current Consumption
| Product | Nominal | Voltage | Default | Lower |
| Version: | Voltage: | Range: | Power | Power |
| | | Level | Level |
| | | Consumption: | Consumption: |
| | | | | |
| DC024 | 12vDC | 10-60vDC | 440mA | 376mA |
| 24vDC | 10-60vDC | 888mA | 391mA |
| 48vDC | 10-60vDC | 453mA | 223mA |
| | | | | |
| AC230 | 115Vac 50/60Hz | 100-240vAC | 340mA | 173mA |
| 230Vac 50/60Hz | 100-240vAC | 212mA | 107mA |
Part Codes
| Variable: | Identifier: | Description: |
| | | |
| Product type: | MA2 | Alarm horn sounder |
| | | |
| Flare type: | H | High Output Flare re-entrant horn |
| | | |
| Voltage: | DC024 | 10-60vDC |
| AC230 | 100-240vAC 50/60Hz |
| | | |
| Cable entries: [e] | A | M20x1.5 & ½” NPT |
| | B | M20x1.5 & M20x1.5 (Default) |
| C | ½” NPT & ½” NPT |
| | | |
| Stopping plug material: [m] | N | Nylon |
| Bracket: [s] | 1 | 316 (A4) Stainless Steel |
| 3 | 316 (A4) Stainless Steel |
| | with Equipment tag |
| | | |
| Approvals: | A1 | CE, EAC, RMRS |
| | | |
| Enclosure: | R | Red (RAL 3000) |
| G | Grey (RAL7038) |
Approvals
- Russian Maritime Register of Shipping
Cert: No. 19.00193.278
Note
The MA2F is a direct, backward compatible, replacement for the MA121 alarm horn sounder.
Tone Table
Please refer to the DataSheet
