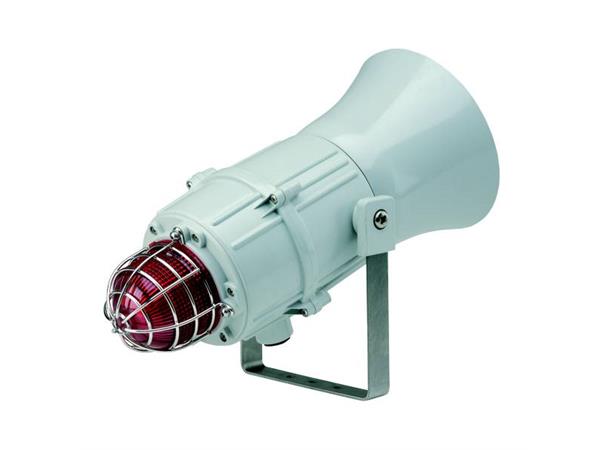

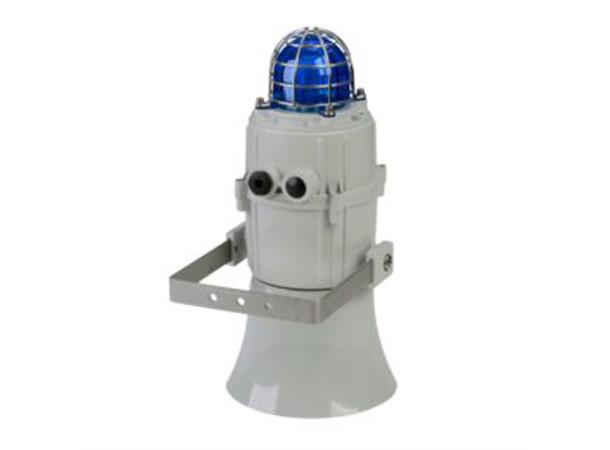

MC1LD2F Alarm Horn Sounder & LED Beacon
The MC1LD2F combines a high output, 119dB(A) alarm sounder with a multi-function L.E.D. beacon. With a robust, fire retardant, IP66 & IP67 housing, the MC1LD2F is particularly suitable for harsh environments with high ambient noise levels. The sounder & beacon can be operated individually or simultaneously.
The flare horn on the MC1LD2F produces sound level outputs up to 119dB(A) at 1 metre with a choice of 45 alarm tones and 3 remotely selectable stages. The LED beacon contains an array of 4 high output, multi-function L.E.D.s. with a total of 7 modes of operation - 5 flashing modes and 2 steady modes for use in indicator / status applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device.
| Features: |
| |
| • Automatic synchronisation on multi-sounder system. |
| • Continuously rated. |
| • Large termination area. |
| • Stainless steel fixings. |
| • Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning. |
| • Duplicate cable terminations (in & out for daisy-chain installations). |
| • Field replaceable UV stable coloured lens filters. |
| • Tropicalisation available on request. |
| • Array of 4 x high power Cree® LED's |
| • Modes: |
| - 1Hz flash (60 fpm) |
| - 1.5Hz flash (90 fpm) |
| - 2Hz flash (120 fpm) |
| - Double strike flash |
| - Triple strike flash |
| - High Power Steady |
| - Low Power Steady |
| • Eff. Intensity cd: 87 cd - High Power Steady |
| • Eff. Intensity cd: 160 cd - 1Hz flash |
| • Ingress protection: IP66/67 Type 4/4X/13 |
| |
| Specification: |
Alarm Horn / Sounder:
| | |
| Maximum output: | 119dB(A) @ 1 metre [110dB(A) @ 10ft/3m] |
| Nominal output: | 112dB(A) @ 1m +/- 3dB - Tone 2 |
| [103dB(A) @ 10ft/3m] |
| No. of tones: | 45 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 112dB(A); Min. 100dB(A) - Tone 2 |
| Effective range: | 125m / 410ft @ 1KHz |
| Stage switching: | Negative or positive |
| Reverse polarity stage switching on DC units. |
| | |
| LED Beacon: | |
| | |
| Source: | Array of 4 x High Power Cree® LED's |
| Modes: | - 1Hz flash (60 fpm) |
| - 1.5Hz flash (90 fpm) |
| - 2Hz flash (120 fpm) |
| - Double strike flash |
| - Triple strike flash |
| - High Power Steady |
| - Low Power Steady |
| Eff. Intensity cd: | 87 cd - High Power Steady |
| 160 cd - 1Hz flash |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| | |
| General: | |
| | |
| Voltages: | 24vDC; 115vAC; 230vAC |
| Ingress protection: | IP66/67 Type 4/4X/13 |
| Housing material: | High impact UL94 V0 & 5VA FR ABS |
| Colour: | Grey (RAL7038) |
| Lens material: | Borosilicate glass dome with PC prismatic lens cover. |
| Guard: | Stainless Steel dome guard as standard |
| Cable entries: | Dual M20x1.5 or 1/2"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included |
| EOL can be factory fitted |
| Operating temp: | -25 to +55°C [-13° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | DC: 3.00kg/6.6Ibs AC:3.50kg/7.7Ibs |
| | |
* SPL data +/-3dB(A). Measured at optimum voltage.
Current Consumption:
Alarm Sounder:
| Version: | Voltage: | Current: |
| | | |
| 24vDC | 10-30vDC | 200mA |
| 115vAC 50/60Hz | +/-10% | 100mA |
| 230vAC 50/60Hz | +/-10% | 60mA |
* current at nominal voltage on Tone 2
Beacon modes:
| Stage 1: | Stage 2: | Stage 3: |
| [On board] | [Remote] | [Remote] |
| | | |
| Steady High Power | Flashing 1Hz | Triple Strike |
| Steady Low Power | Flashing 1Hz | Triple Strike |
| Flashing 1Hz | 2x Flash 2Hz | Triple Strike |
| Flashing 1.5Hz | Flashing 2Hz | Double Strike |
| Flashing 2Hz | Triple Strike | Triple Strike |
| Double Strike | Steady High Power | Triple Strike |
| Triple Strike | Flashing 2Hz | Double Strike |
Note: Remote second and third stage on DC units only
L.E.D. Beacon:
| Version: | Voltage: | Steady | Steady | Flashing |
| | | High | Low | 1Hz: |
| | Power: | Power: | |
| | | | | |
| 24vDC [18-54vDC] | +/-25% | 240mA | 134mA | 110mA |
| 115vAC 50/60Hz | +/-10% | 95mA | 78mA | 90mA |
| 230vAC 50/60Hz | +/-10% | 48mA | 37mA | 45mA |
Part Codes: MC1LD2 F [u] [e] [m] [s] [v] [x] / [y]
| Part Code: | Ident.: | Description: |
| | | |
| Product type: | MC1LD2 | Alarm Sounder & LED Beacon |
| | | |
| Type: | F | Flare re-entrant Horn |
| | | |
| Voltage: [u] | DC024 | 24vDC |
| AC115 | 115vAC 50/60Hz |
| AC230 | 230vAC 50/60Hz |
| | | |
| Cable entries: [e] | A | M20x1.5 & ½” NPT |
| B | M20x1.5 & M20x1.5 (Default) |
| C | ½” NPT & ½” NPT |
| | | |
| Stopping plug material: [m] | N | Nylon (Default) |
| | B | Brass |
| P | Nickel Plated Brass |
| S | Stainless Steel |
| | |
| Guard & Bracket | 1 | A2 304 Stainless Steel (Default) |
| material: [s] | 2 | A4 316 Stainless Steel |
| | | |
| Product version: [v] | A1 | Standard (Default) |
| P1 | Stage Programmable |
| | | |
| Enclosure colour: [x] | G | Grey (Default) |
| | | |
| Lens colour: / [y] | R | R Red |
| A | A Amber (Orange) |
| Y | Y Yellow |
| G | G Green |
| B | B Blue |
| C | C Clear (Transparent) |
| M | M Magenta |
| | | |
| Example part code: | MC1LD2 F AC115 B N 1 A1 G / A |
MC1LD2 Combined unit with flare, re-entrant horn in 115Vac with dual M20 cable entries, Grey enclosure with Amber lens.
