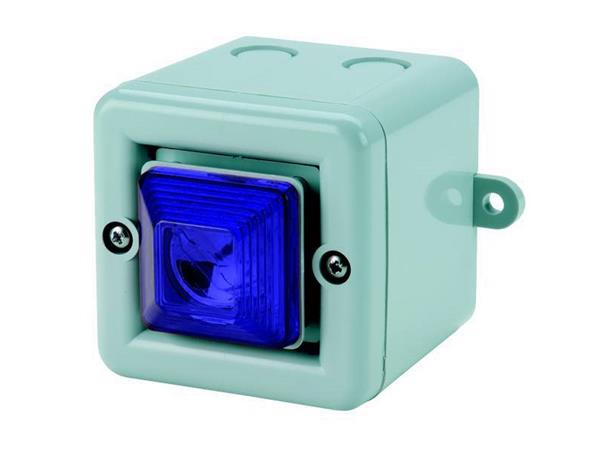

SON4 Alarm Sounder & Xenon Beacon
The SON4 is a compact, high output, 104dB(A) alarm sounder with integral Xenon strobe beacon. The robust fire retardant housing ensures the SON¤ is suitable for all general signalling applications including fire, security and process controll.
PRODUCT SPECIFICATIONS:
Sounder:
Maximum output: 104dB(A) @ 1 metre
Nominal output: 100dB(A) @ 1m +/- 3dB - Tone 2
No. of tones: 32 (UKOOA / PFEERcompliant)
No. of stages: 3
Volume control: 3 levels via on board switch
Effective range: 32m @ 1KHz
Stage switching: Reverse polarity stage switching on DC units.
Beacon:
Energy: 0.5 Joules
Flash rate: 1 Hz (60fpm)
Peak Candela: 5,038 cd
Effective Intensity cd: 11 cd (Candela measurements representative of perfomance with amber lens at optimum voltage.)
Lens colour: Blue
General:
Voltages: 24V dc (18-30V dc) Reverse polarity diode protection on DC units
Current Consumption:80-110mA
Ingress protection: IP55
Housing material: High impact UL80 V0 & 5VA FR ABS
Colour: Grey (RAL 7038)
Lens material: PC
Cable entries: 4 x M20 clearance gland knockouts in side & back
Terminals: 0.5 to 1.5mm2 cables.
Operating temerature: -25 to +55¤C
Storage temperature: -40 to +70¤C
Relative humidity: 90% at 20¤C
Weight: DC: 0.30kg AC:0.40kg
FEATURES:
- Automatic synchronisation on multi-sounder system
- Continuosly rated
- Stainless steel fixings
- Unit can be mounted using external lugs or internal BESA compatible fixing positions.
- Duplicate cable terminations (in & out for daisy-chain installations)
- Wire to base installations
- Tropocialisation available on request
- Available with custom tone configurations
APPROVALS:
- VdS approved to EN54-3 (CPD 89 / 106 / EEC)
- UKOOA/PFEER compliant alarm tones.
- GOST-R approved. Cert: POCC GB-JB05-B02228
VERSIONS AVAILABLE:
- DC: 24V
- AC: 24V, 115V, 230V
- Housing Colour: Grey, Red, White
- Lens colour: Amber, Blue, Green, Red, Yellow
------------------------------------------------
