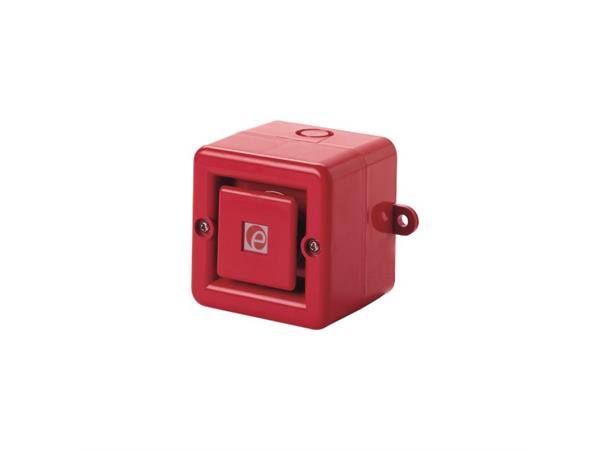

SONF1 Alarm Sounder
The SONF1 is a compact, high output, 100dB(A) alarm sounder. Low current consumption and high SPL in a robust fire retardant housing ensure it is suitable for general signalling applications including fire, security and process control.
Description:
Sonora range offers compact audio visual signaling for fire, industrial, process control and machine safety applications. The range features low current consumption combined with high performance. The SONF1 is available with two levels of sound level output and is CPR compliant (tested to EN54-3) for fire alarm use. Approved by VdS and UL.
Features:
• Automatic synchronisation on multi-sounder system.
• Continuously rated.
• Stainless steel fixings.
• Mounting via internal BESA compatible fixing positions (standard version) or via external mounting lugs.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalisation available on request.
• Available with custom tone configurations and frequencies.
Specification:
| Maximum output: | 100dB(A) @ 1 metre [91dB(A) @ 10ft/3m] |
| Nominal output: | 99dB(A) @ 1m +/- 3dB – Tone 1 [90dB(A) @ 10ft/3m] |
| No. of tones: | 10 (UKOOA / PFEER compliant) |
| No. of stages: | 2 (AC voltage variants 1 stage) |
| Volume control: | On board potentiometer |
| (Volume reduction is 23dB(A) on 800/1000Hz tone) |
| Effective range: | 30m/98.4ft @ 1KHz |
| Voltages DC: | 24vDC (10-30vDC) |
| Reverse polarity diode protection on DC units. |
| MED version: | 20-30vDC |
| Voltages AC: | 24vAC; 115vAC; 230vAC |
| IP: | IP66 (UL version Type 13 & 3R) |
| Housing | |
| material: | High impact UL94 V0 & 5VA FR ABS |
| Colour: | Red (RAL3000), grey (RAL7038) or white. |
| Cable entries: | 4 x M20 clearance gland knockouts in side & back |
| Terminals: | 0.5 to 1.5mm² cables. |
| Operating temp: | -25 to +55°C [-13° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative | |
| humidity: | 90% at 20°C [68°F] |
| Vibration Test: | 35 cycles per second 0.01” for a duration 4Hr (UL464) |
| Jarring Test: | 5ft/lb Impact (UL464) |
| Impact Test: | 3x 1lb @ 5ft (UL464)| |
| Weight: | 0.30kg/0.66Ibs |
Part Codes:
| Version: | Part code: |
| | |
| 24vDC | SONF1 DC24 [b][x] |
| 24vAC | SONF1 AC24 [b][x] |
| 115vAC | SONF1 AC115 [b][x] |
| 230vAC | SONF1 AC230 [b][x] |
| | |
| [b] = Back box type: | No identifier: Sonora type: |
| – 3 x side & 1 x rear 20mm knockouts |
| A: A100 type with lugs: |
| – 2 x side & 1 x rear 20mm knockouts |
| M: Multi type with lugs: |
| – 1 x side 20mm entry with stopping plug |
| | |
| [x] = Enclosure colour: | G: Grey (RAL7038) |
| R: Red (RAL3000) |
| W: White |
| | |
Suffix part number with ‘-UL’ for UL approved version
Suffix part number with ‘-M’ for MED approved version [24vDC unit only]
Alarm sounder:
| Version: | Voltage: | Current: |
| | | |
| 24vDC | 10-30vDC | 25mA |
| MED version: 20-30vDC | 25mA |
| 24vAC - 50/60Hz | +/-10% | 40mA |
| 115vAC - 50/60Hz | +/-10% | 13mA |
| 230vAC - 50/60Hz | +/-10% | 13mA |
Approvals:
• VdS approved: EN54-3 (CPD 89/106/EEC).
• UL & cULs approved: General signalling use.
• GOST-R approved. Cert: POCC GB.JB05.H00144.
• Marine Equipment Directive (MED) Certificate: MEDB00001EH
Tone Table:
| Stage 1: | Frequency Description: | Stage 2: |
| | | |
| T 1 | 800/1000Hz @ 0.25 sec Alternating | T 8 |
| T 2 | 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop | T 1 |
| T 3 | 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. | T 8 |
| T 4 | 544Hz (100mS)/440Hz (400mS) – NF S 32-001 | T 9 |
| T 5 | Bell | T 1 |
| T 6 | 800/1000Hz @ 7Hz Sweeping | T 8 |
| T 7 | 500-1200Hz 3.75sec /0.25sec. Australian Evac. | T 10 |
| T 8 | 1000Hz Continuous – PFEER Toxic Gas | |
| T 9 | Continuous 554Hz | |
| T 10 | 420Hz @ 0.625 sec Australian Alert | |
| | | |
| AC Version | (Single stage only): | |
| Stage 1: | Frequency Description: | |
| | | |
| T 1 | 800/1000Hz @ 0.25 sec Alternating | |
| T 2 | 500/1200Hz @ 0.3Hz 0.5 sec Slow Whoop | |
| T 3 | 1200/500Hz @ 1Hz – DIN / PFEER P.T.A.P. | |
| T 4 | 544Hz (100mS)/440Hz (400mS) – NF S 32-001 | |
| T 5 | 1000Hz Continuous – PFEER Toxic Gas | |
| T 6 | Bell | |
| T 7 | 800/1000Hz @ 7Hz Sweeping | |
| T 8 | 2400/2900Hz @ 50Hz Sweeping | |
| T 9 | 420Hz @ 0.625 sec Australian Alert | |
| T 10 | 500-1200Hz 3.75sec /0.25sec. Australian Evac. | |
| | | |
Country specific or custom tone configurations and alarm frequencies are available upon request.
