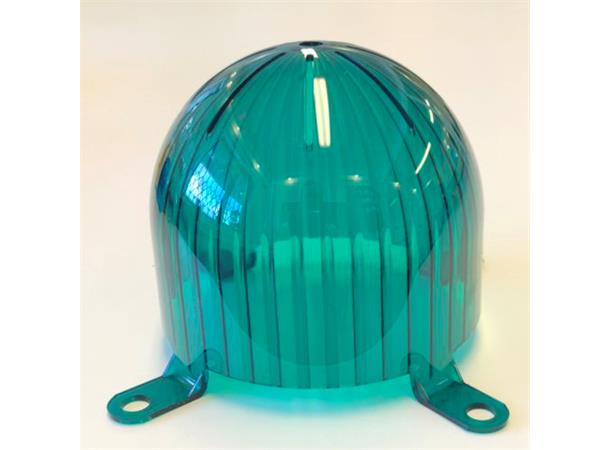

Field replaceable colour filter for GNEx-B2 X10, X15 & X21 Xenon Strobe Beacons
The GNEx-B2 is an IECEx & ATEX approved explosion proof Xenon beacon. The robust IP66 corrosion proof GRP enclosure and extended temperature range ensures the GNEx-B2 is suitable for all Zone 1, 2, 21 & 22 hazardous location signalling applications.
Features:
• UV stable PC field replaceable lens colour filter
Approvals:
• IECEx UL 15.0003X
IEC 60079-0 : 2 011
IEC 60079-1 : 2 014
IEC 60079-31 : 2 013
• ATEX DEMKO 15ATEX1448X
EN 60079-0 : 2 012
EN 60079-1 : 2 014
EN 60079-31 : 2 014
Coding:
• II 2 G Ex db IIC G b T6 Ta -50°C to +40°C
• II 2 G Ex db IIC G b T5 Ta -50°C to +55°C
• II 2 G Ex db IIC G b T4 Ta -50°C to +70°C
• II 2 D Ex tb IIIC Db T110°C Ta -50°C to +70°C
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.15 | 0.51 | 0.86 | 0.49 | 0.12 | 1.00 |
