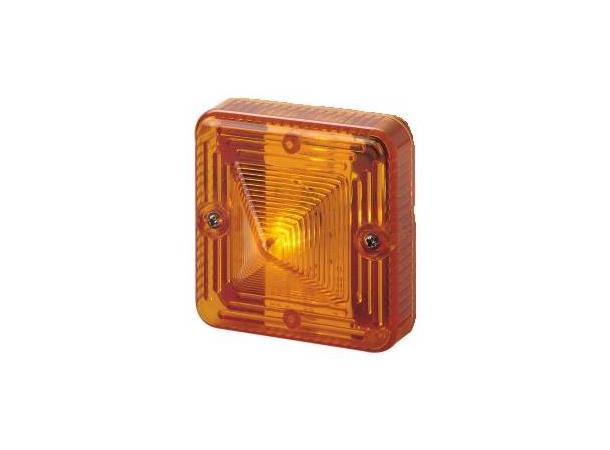

LED Element ST-L101H for Stack/Tower
Suitable for Stack/Towers type STB2, STB3 ,STB4, STA2, STA3 or STA4.
The L101H is a compact, robust High intensity 18 x Cree© SMT White L.E.D. array beacon ideal for all general signalling applications including status indication, security and process control.
The array of Cree© SMT White L.E.D generates 180cd of light output measured ref. to I.E.S. and can be user set to either steady ot 7 other flashing or blinking modes.
cULs approved version for general signalling use.
Approvals:
• UL & cULs approved
• EAC compliant
Specification:
| Type: | L101H multi-function LED |
| Light source: | High intensity 18 x Cree© SMT White L.E.D. |
| array beacon |
| Function: | High Power Steady |
| Blinking – 425ms ON 75ms OFF
1.0Hz (60 fpm) – 200ms ON 800ms OFF
1.33Hz (80fpm) – 150ms ON 600ms OFF
Double Flash
Triple Flash
2.0Hz (120fpm) – 125ms ON 375ms OFF
Temporal Flash |
| Peak/Effective | |
| Intensity cd: | 180cd – measured ref. to I.E.S. |
| Terminals: | Double (in/out) terminals |
| 0.5 to 4.0mm² cables. |
| Lens colour: | Amber, Blue, Clear, Green, Magenta, Red, Yellow |
| | |
| General: | |
| | |
| Ingress Protection: | IP66 |
| Lens material: | PC (Polycarbonate) |
| Fixings: | Stainless Steel |
| Operating temp: | -25° to +55°C [-13° to +131°F] |
| Storage temp: | -40° to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 0.20kg / 0.44Ibs |
Part Codes: ST-L101H [u] [v] [y]
| Version: | Ident: | Description: |
| | | |
| Product type: | ST-L101H | L101H LED Beacon |
| | | |
| Voltage: [u] | AC230 | 48-260vAC 50/60Hz |
| DC048 | 48-260vDC |
| DC024 | 16-33vDC |
| DC012 | 10-14vDC |
| | | |
| Version: [v] | A1 | UL, cULs |
| | | |
| Lens colour: [y] | R | Red |
| A | Amber |
| Y | Yellow |
| | G | Green |
| B | Blue |
| C | Clear |
| M | Magenta |
Flash Settings:
 |
Flash Mode Dip Switch Shown with
1-OFF, 2-ON, 3-OFF (0 1 0).
This denotes flash mode 1Hz.
For further flash modes, see table below: |
| |
| Switch Setting | Flash Mode |
| | |
| ( 0 0 0 ) : | Steady On |
| ( 1 0 0 ) : | Blinking |
| ( 0 1 0 ) : | Flashing 1Hz |
| ( 1 1 0 ) : | Flashing 1.5Hz |
| ( 0 0 1 ) : | Flashing Double Strike |
| ( 1 0 1 ) : | Flashing Triple Strike |
| ( 0 1 1 ) : | Flashing 2Hz |
| ( 1 1 1 ) : | Flashing - Temporal |
Technical Data:
| Range: | Version: | Current | Current | Current | Current | Max |
| | | Steady | 1Hz | 1.5Hz | 2Hz | Current: |
| | Mode: | Flash: | Flash: | Flash: | |
| | | | | | | |
| 10-14vDC | DC012 | 167.5mA | 79.5mA | 84mA | 87mA | 168mA @ 14vDC |
| 16-33vDC | DC024 | 178.5mA | 86.5mA | 91mA | 96mA | 183mA @ 24vDC |
| 48-260vDC | DC048 | 115mA | 51mA | 58mA | 62.5mA | 115mA @ 48vDC |
| 48-260vAC | AC230 | 85.5mA @ 115Vac | 34mA @ 115Vac | 37.5mA @ 115Vac | 40mA @ 115Vac | 166mA @ 48Vac |
| AC230 | 53mA @ 230Vac | 18.5mA @ 230Vac | 19.5mA @ 230Vac | 23.5mA @ 230Vac | 51mA @ 260Vac |
