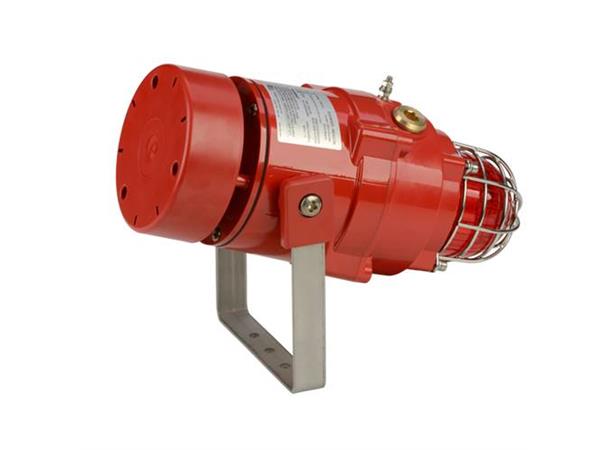

BExCS110-05 Explosion Proof Radial Alarm Horn & Xenon Strobe
The flameproof BExCS110-05 combination alarm horn sounders and Xenon strobe beacons are suitable for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. Alarm horn & Xenon beacon may be connected from a single power supply for simultaneous operation or from separate supplies for independent operation.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.
Features:
• Marine grade, corrosion proof, LM6 aluminium enclosure
• Automatic synchronisation on multi-beacon & sounder systems.
• Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
• Xenon tubes mechanically secured against shock & vibration
• Very large termination area.
• Dual M20 cable entries - adaptors available.
• Stopping plug included.
• Ratchet adjustable stainless steel ‘U’ bracket.
• Reverse polarity diode fitted.
• IP66/67 ingress protection.
• 120 candela effective light intensity.
• UV stable PC, field replaceable, colour lens filters.
• ‘Stage Programmable’ version available with 45 tones & 4 remotely selectable stages.
Approvals:
IECEx KEM 10.0025X
IEC 60079-0 : 2011
IEC 60079-1 : 2007-4
IEC 60079-31 : 2013
ATEX KEMA 01ATEX2223X
EN 60079-0 : 2012 + A11
EN 60079-1 : 2007
EN 60079-31 : 2014
CR-TU Ex EAC certificate: RU C-GB.MH04.B.00048
Inmetro certificate: 16-IEx-0034
Coding:
• Ex d IIB T5 Gb Ta. -50°C to +40°C
• Ex d IIB T4 Gb Ta. -50°C to +70°C
• Ex tb IIIC T110°C Db Ta. -50°C to +55°C
• Ex tb IIIC T125°C Db Ta. -50°C to +70°C
Specification:
| Sounder/Horn: | |
| Maximum output: | 115dB(A) @ 1 metre [106dB(A) @ 10ft/3m] |
| Nominal output: | 110dB(A) @ 1m +/- 3dB - Tone 2 |
| [101dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 110dB(A); Min. 72dB(A) - Tone 2 |
| Effective range: | 100m/328ft @ 1KHz |
| Voltages DC: | 12vDC; 24vDC; 48vDC |
| Voltages AC: | 115vAC; 230vAC |
| Stage switching: | Negative or positive |
| | |
| Beacon: | |
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Eff. Intensity cd: | 250 cd - calculated from energy (J) |
| Peak Candela: | 39,463 cd* - measured ref. to I.E.S. |
| Eff. Intensity cd: | 120 cd* - measured ref. to I.E.S. |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Voltages DC: | 12vDC; 24vDC; 48vDC |
| Voltages AC: | 115vAC; 230vAC |
| Tube life: | Emissions are reduced to 70% after 8 million flashes |
| | |
| General: | |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish - anti-corrosion. |
| Colour: | RAL3000 Red |
| Horn material: | High impact UL94 V0 & 5VA FR ABS (Red) |
| Cable entries: | 2 x M20 ISO (1 x stopping plug included as standard) |
| Adaptors to M25, 1/2" & 3/4" NPT can be specified |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | < 2 litres |
| Line monitoring: | Blocking diode included |
| EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor |
| or diode (DC versions) can be fitted |
| Grounding stud: | M5 |
| Temp. range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 90% at 20°C [68°F] |
| |
| Weight: | DC: 4.80kg/10.56Ibs AC: 5.00kg/11Ibs |
*All candela data is representative of performance with clear lens at optimum voltage.
SPL data +/-3dB(A)
