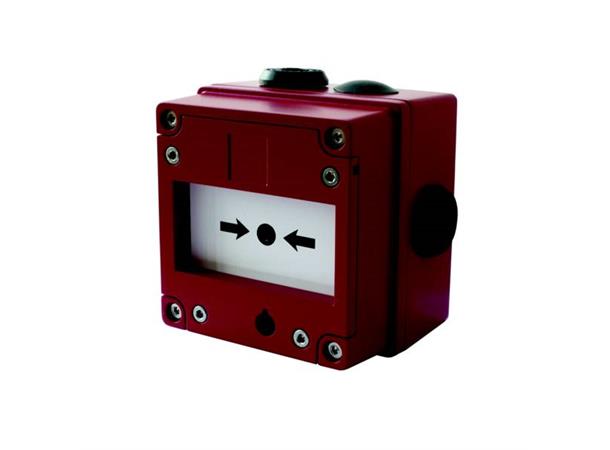

BExCP3-BG Break Glass Manual Call Point
BExCP3BBGSSNAN1A1RN24
https://www.e2s.com/product/13140
| BExCP3[ABC]BG[S][T][L][E][M][D][V][X][O][U] |
BEXCP3[A/B/C]-BG
Break Glass MCP |
|
| BEXCP3VAR01-[S]=S |
Switch type: SPCO |
option [S] = S |
| BEXCP3VAR02-[T]=S |
Standard Terminal (6
x 4.0mm) |
option [T] = S |
| BEXCP3VAR03-[L]=N |
No Lift flap (BG
version only) |
option [L] = N |
| BEXCP3VAR04-[E]=A |
Entries: 3 x M20
[Default] |
option [E] = A |
| BEXCP3VAR05-[M]=N |
Stopping plug: Nylon |
option [M] = N |
| BEXCP3VAR06-[D]=1 |
No Duty label, no
Equip. tag |
option [D] = 1 |
| BEXCP3VAR07-[V]=A |
Product version:
IECEx, ATEX, Ex EAC, INMETRO, PESO, SIL2 |
option [V] = A |
| BEXCP3VAR08-[O]=1 |
Product option:
Standard |
option [O] = 1 |
| BEXCP3VAR09-[X]=R |
Enclosure colour: Red |
option [X] = R |
| BEXCP3VAR10-[U]=N |
Default = N - not
currently used |
option [U] = N |
| BEXCP3VAR11-[V]=24 |
System voltage: 24Vdc |
option [V] = 24 (B or
C version only) |
