Kockum Sonics TYFON KT 75/400

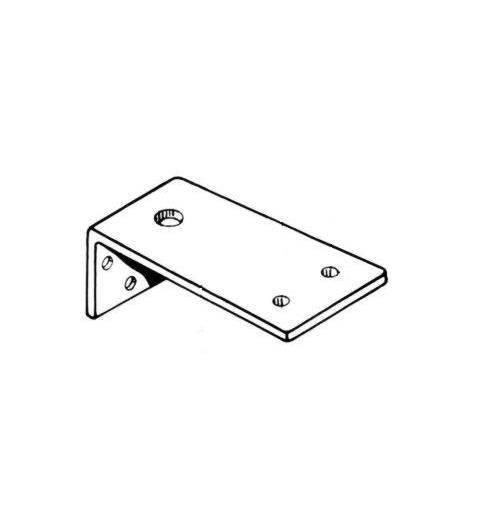

(Horn only with angle screwing)
General Information
• Light, rigid and powerful signaling apparatus for different applications e.g. aboard ships, in industry, for military applications and for heavy vehicles etc.
• Material: Plastic resin of high impact and vibration strength, certain parts glass-fiber reinforced.
• Entirely maintenance-free. The diaphragm never wears out.
Technical Data
Frequency: Basic note 400 Hz, completed by power and noise penetrating harmonics.
Sound level: Sound Pressure Level 136 dB(A) measured at 1 m, equivalent to 120 dB(A) at 6 m and 106 dB at 30m
Supply compressed air: Working pressure: 0,2 - 0,5 MPa* (2 - 5 bar)* or (29 - 72.5 psi)*
Air consumption: 5 Nl/sec free air (0.18 cf/sec)
Weight: 0,34kg (0.7lbs)(Whistle only)
