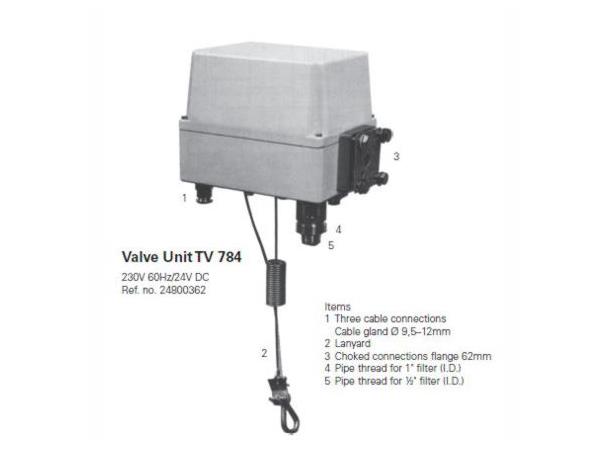

Valve Unit TV 784
For installation together with TYFON® and SUPERTYFON® Whistles
General Information:
One of the most important parts assembled to a whistle is the valve.
The new Valve Unit TV 784 designed for this purpose provides the following:
• Good air flow section with low electric power consumption.
• Electric heating provided by a 25W element with thermostat.
• Exchangeable flange choke for different pressures.
• Two solenoid coils for normal and emergency operation.
• Lanyard for stand–by operation.
| Technical Data: | |
| | |
| Mains operation: | 230V AC, 50/60 Hz, 27W* |
| Emergency operation: | 24V DC 27W |
| Heating: | 230V AC 25W* |
| Working pressure: | 0,3 - 3,0 MPa* |
| (different chokes) |
| Air consumption: | 8 - 100 I/s |
| (for different whistle types) |
| Dimensions: | Box, 170 x 135 x 145 (L x D x H) |
| Weight: | 3,8 kg |
| | |
*Other voltage and air pressure on request.
Note: To avoid functional trouble, blow the pipe line thoroughly clean before connecting to valve.
