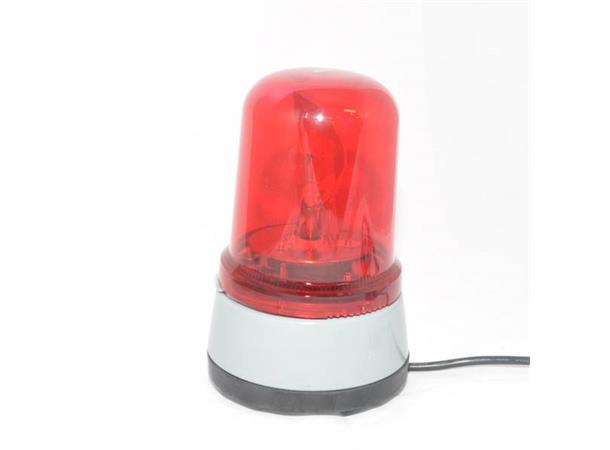

Rotating Mirror Beacon type EHS
Rotating mirror beacon in painted mild steel housing, for less aggressive environments.
Quite enduring with low noise friction-gear. Not suited for outdoor use and/or temperatures below freezing point.
Should be mounted preferably in upright position.
NB: Mounting in horizontal position will increase were & tear on motor, ball bearings and gear, and may corse over heating and melt-down.
PRODUCT SPECIFICATIONS:
Nominal Voltage: 115vAC (50-60Hz) +/- 10%
Flash freqency: 180 r.p.m.
Duty cycle: 100%
Current Consumption: 400mA (current at nominal voltage)
Lamp source: BA15d 40w
Lens (light) colour: Red
Ingress Protection: IP54
Housing Colour: Grey
Housing Material: Mild Steel (Painted Grey)
Lens material: PC
Operating temp.: -10 to +50°C
Connection: Flying leads
Weight : 1,1 kg
