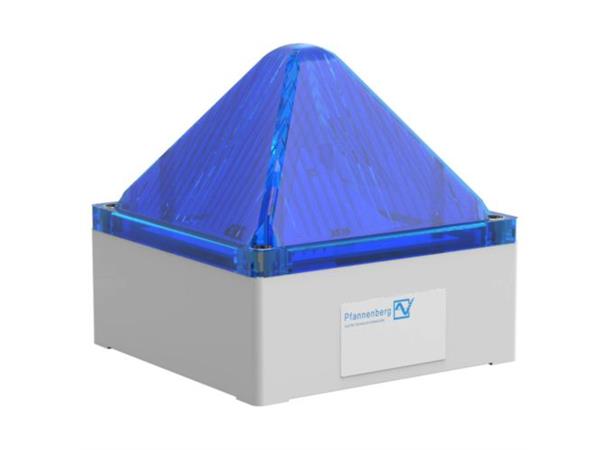

Quadro-LED-Hi LED Multi-function Light
Extreme bright 75 cd LED light with large signaling effect, brightness adjustable.
• Innovative LED light with high signaling effect.
• Adjustable light intensity.
• Suitable for indoor and outdoor use.
• Extremely insensitive to shock and vibration.
• 3 selectable operating modes as standard:
– Continuous light
– Blinking light (2 modes)
– Flashing light (5 modes)
• 24 V AC/DC devices as standard with Soft Start Module.
• Double-pole terminal.
• Inexpensive and flexible; wide range power supplies as standard.
| General: | |
| | |
| Operating modes: | Continuous light |
| Blinking light 1 Hz |
| Blinking light 2 Hz |
| Flashing light 0.1 Hz |
| Flashing light 0.5 Hz |
| Flashing light 0.75 Hz |
| Flashing light 1 Hz |
| Flashing light 2 Hz |
| | |
| Light source: | 4 high output LED |
| Light intensity (DIN 5037): *) | 75 cd (reducible) |
| Max. viewing distance: | 201 m |
| Operating temperature: | –40°C to +55°C |
| Storage temperature: | –40°C to +70°C |
| Relative humidity: | 100 % |
| Protection system (EN 60529): | IP66 & IP67 |
| Impact resistance (EN 50102): | IK08 |
| Protection class: | II |
| Service life of the light source: | =50,000 hrs |
| Lens material: | Polycarbonate (PC) |
| Housing material: | Polycarbonate (PC), grey RAL 7035 |
| Cable entry: | 2 x M20/M32 side + 2 x M20 bottom |
| Connecting terminal: | Cage clamp 0.08–2.5 mm2 (2 per Pol) |
| Weight: | 500 g |
| | |
| *) With a clear lens | |
| Electrical Data: | 230vAC: | 24vDC: |
| | | |
| Rated voltage: | 115 / 230vAC/DC | 24 / 48vDC |
| Rated frequency: | 50/60 Hz & DC | DC |
| Voltage range: | 90–253vAC/DC | 11–60vDC |
| Current consumption | | |
| @ 1 Hz flash: | 45mA @ 230vAC | 165mA @ 24vDC |
| | | |

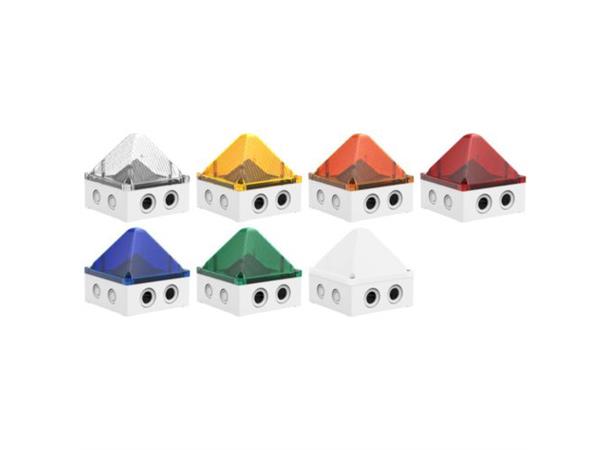

| Ordering details: | 230vAC: | 24vDC: |
| | | |
| Red: | 2110 864 5000 | 2110 863 5000 |
| Amber: | 2110 864 4000 | 2110 863 4000 |
| Yellow: | 2110 864 3000 | 2110 863 3000 |
| Green: | 2110 864 6000 | 2110 863 6000 |
| Blue: | 2110 864 7000 | 2110 863 7000 |
| White (Opal): | 2110 864 2000 | 2110 863 2000 |
| Clear: | 2110 864 1000 | 2110 863 1000 |
