PRL-97704-2C-G-AX-PLB
FOR OFFSHORE METAL HELIDECKS

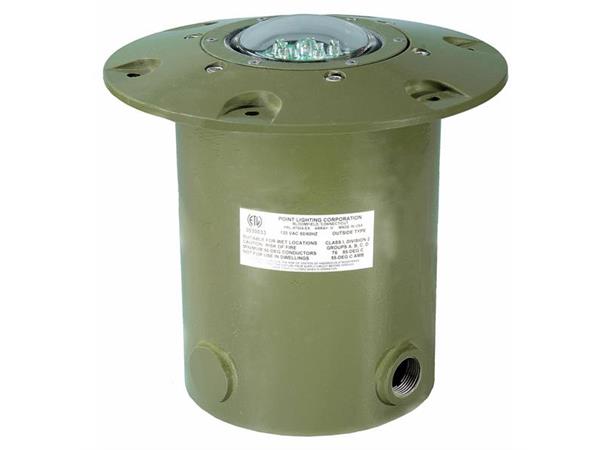

The PRL-AX LED Point Rollover Light is a 12-inch diameter semiflush light used for metal helidecks on the TLOF and/or the FATO perimeter used for ATEX Zone 1 & 2 helideck TLOF and FATO applications. The PRL may be dropped into a hole cut in the metal deck and secured with six screws on a 10-¼ inch bolt circle. The thick glass dome lens passed the impact test per IEC 60079-0:2007. The lens and optical assembly are sealed mechanically. Standard with our marine treatment finish and internal & external ground lugs on the PLB base. Standard with 2 x 1-inch NPT at entries 0 & 180-degrees. Suitable for use for all gas groups in Zone 1 and Zone 2 areas.
Note: Minimum opening in the helideck is 207mm per side square opening or minimum 222mm diameter round opening.
Standard with 2 x 1-inch NPT entries at 0 & 180-degrees
Note: Array H brightness exceeds ICAO Annex 14
The PRL v4 C array is 7.4 watts at 1 20.220V
All –AX lights include marine treatment by definition.
The fixture shall be treated for matine conditions by cleaning per US MIL method III of TT-C-490, chromate priming per US MIL-C-5547, epoxy powder base coat and glossy polyester powdercoat finish coat in color RAL 6003 (FED-STD-595 color #74097) qreen.
Oven cured per US MIL-PRF-24712A.
Compliances:
Ex II 2 G Ex e mb IIC T5 Gb
Notified Body: 0518 Sira Testing & Certification Ltd. x
UK CAA CAP 437
Registered ISO 9001:2008
American Bureau of Shipping (ABS) Type Approved Product
IMO 2009 MODU Code (2010) paragraph 1 3.5.20
FAA AC 150/5390-213 Heliport Design Guide
ICAO Annex 14, Volume II
