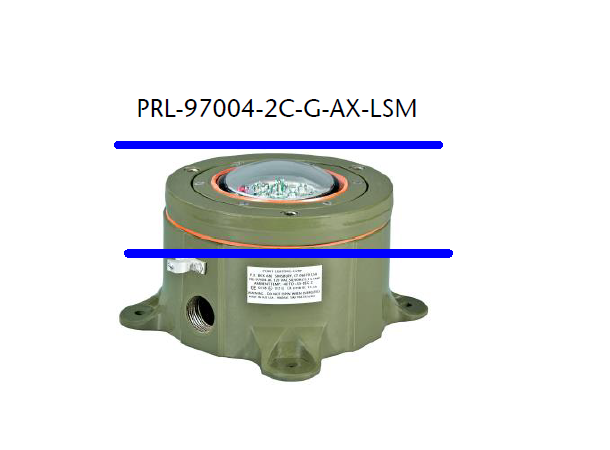

Ex Point Helideck Low Surface Light PRL-AX-LSM LED v4
ATEX ZONE 1 & 2
type PRL-97004-2C-G-AX-LSM-M20
LED 220V Green Surface mounted perimeter light; 148mm height
CAP 437; UL 1598A marine vessels
Note that the –AX cannot be serviced at all. If anything fails, throw away the whole optical assembly.
Includes Marine Treatment
Certificate Number: SIRA 10ATEX5240X
T ambient: -55 deg C to +55 deg C
Operating: -55 deg C to +55 deg C
Frequency: 50/60 Hz
Ingress Rating: IP 66
Part Numbering Explanation for this model:
Part number: PRL-97004-2C-G-AX-LSM-M20
PRL: Type
97004: Series
2: Voltage: 230VAC
C: Array: CAP 437 (The PRL v4 C array is 7.4 watts at 120-220V)
G: Color: Green
AX: Atex: Zone 1 & Zone 2
LSM: Mounting: Low Surface Mount (see detail H14 under links above)
M20: 2 x M20 entries at 0 & 180-degrees
The PRL-AX-LSM is an 8-inch diameter surface mounted light less than 6-inches high used for metal helidecks or existing pavement heliports on the FATO perimeter. Standard with our marine treatment
finish and internal & external ground lugs. Suitable for use for all gas groups in Zone 1 and Zone 2 areas.
The fixture shall be treated for marine conditions by cleaning per US MIL method III of TT-C-490, chromate priming per US MIL-C5547, epoxy powder base coat and glossy polyester powdercoat finish coat in color RAL 6003 (FED-STD-595 color #74097) green. Oven curedper US MIL-PRF-24772A.
Compliances:
* EEx II 2 G Ex e mb IIC T5 Gb
* Notified Body: 0518 Sira Testing & Certification Ltd.
* UK CAA CAP 437
* Registered ISO 9001 :2008
* American Bureau of Shipping (ABS) Type Approved Product
* ABS Green Passport per MEPC1 79 (59)
* IMO 2009 MODU Code (2010) paragraph 13.5.20
* Transport Canada TP14371, AGA 7.17
* FAA AC 150/5390-2B Heliport Design Guide
* ICAO Annex 14, Volume II
