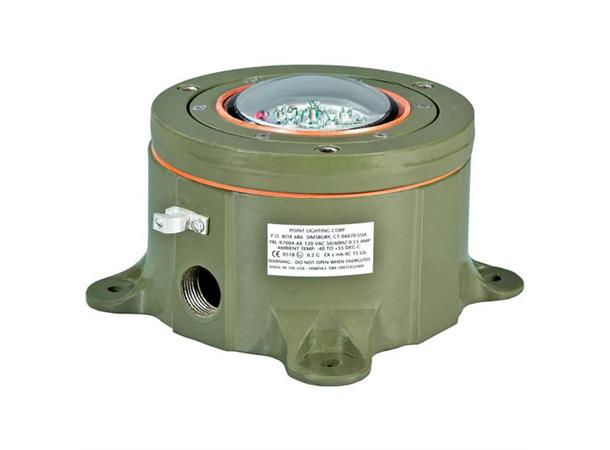

Point Helideck Low Surface Light PRL-LSM LED v4
type PRL-97004-2C-G-LSM
LED 220V Green Surface mounted perimeter light; 148mm height
Part Numbering Explanation for this model:
Part number: PRL-97004-2C-G-LSM
PRL: Type
97004: Series
2: Voltage: 230VAC
C: Array: CAP 437 (The PRL v4 C array is 7.4 watts at 120-220V)
G: Color: Green
LSM: Mounting: Low Surface Mount (see detail H14 under links above)
The PRL-LSM is an 8-inch diameter surface mounted light only 146mm high used for metal helidecks or
existing pavement heliports on the FATO perimeter. Only 2.2 watts and 3.5 VA at 120V.
