PRL-97704-2C-G-AX-PLB
FOR OFFSHORE METAL HELIDECKS

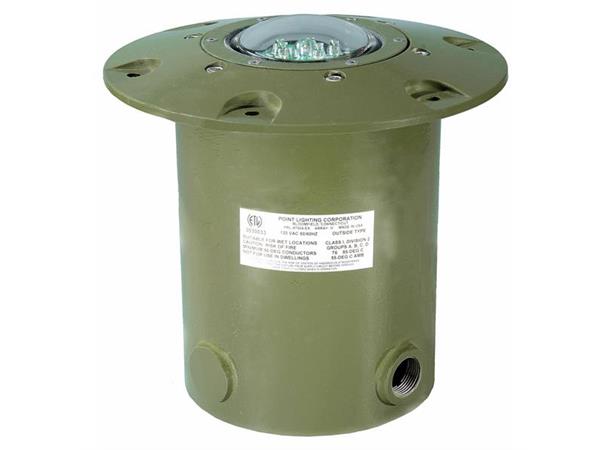

The PRL-AX LED Point Rollover Light is a 12-inch diameter semiflush light used for metal helidecks on the TLOF and/or the FATO perimeter used for ATEX Zone 1 & 2 helideck TLOF and FATO applications. The PRL may be dropped into a hole cut in the metal deck and secured with six screws on a 10-¼ inch bolt circle. The thick glass dome lens passed the impact test per IEC 60079-0:2007. The lens and optical assembly are sealed mechanically. Standard with our marine treatment finish and internal & external ground lugs on the PLB base.
Suitable for use for all gas groups in Zone 1 and Zone 2 areas.
Note: Minimum opening in the helideck is 207mm per side square opening or minimum 222mm diameter round opening.
Standard with 2 x M20 metric entries at 0 & 180-degrees
Note: Array H brightness exceeds ICAO Annex 14
The PRL v4 C array is 7.4 watts at 1 20.220V
All –AX lights include marine treatment by definition.
The fixture shall be treated for matine conditions by cleaning per US MIL method III of TT-C-490, chromate priming per US MIL-C-5547, epoxy powder base coat and glossy polyester powdercoat finish coat in color RAL 6003 (FED-STD-595 color #74097) qreen.
Oven cured per US MIL-PRF-24712A.
Compliances:
Ex II 2 G Ex e mb IIC T5 Gb
Notified Body: 0518 Sira Testing & Certification Ltd. x
UK CAA CAP 437
Registered ISO 9001:2008
American Bureau of Shipping (ABS) Type Approved Product
IMO 2009 MODU Code (2010) paragraph 1 3.5.20
FAA AC 150/5390-213 Heliport Design Guide
ICAO Annex 14, Volume II
Certificate Number: SIRA 1OATEX524OX
T ambient: -55 deg C to +55 deg C
Operating: -55 deg C to +55 deg C
Frequency: 50/60 Hz
Ingress Rating: IP 66
The Marine Treatment finish is used for all marine, high salt content air and other corrosive environments.
The fixture shall be treated for marine conditions by cleaninq per US MIL method Ill of 7T-C-490, chromate priming per US MIL-C-5547, epoxy powder base coat and glossy polyester powdercoat finish coat in color RAL 6003 (FED-STD-595 color #74097) green. Oven cured per US MIL-PRF-24772A.
The operating range for 120v units is 93- 144v. The operating range for 220v units is 176- 250v.
Instruction Sheet: 1597704-AX
LED Life (hours): 100,000
Projection: 1.63 (41)
(above deck)
Base Diameter: 8.0(203)
PLB Depth: 10.0 (254)
PLS Depth: 4.0(102)
Weight: 17.0 lbs 7.7 kg
Volume: 0.37ft' .013m,
Point Lighting Corporation recommends return for factory repair and refurbishment of LED PRL-AX lights.
Replacement Parts
The optical subassembly is not servicable in the field. Contact Point Lighting for more information.
PI-1 0049-4-6 Gasket, Base
PL10524-118 Screw, Socket Head
PI-1 0860 Tool, 1-handle wrench
