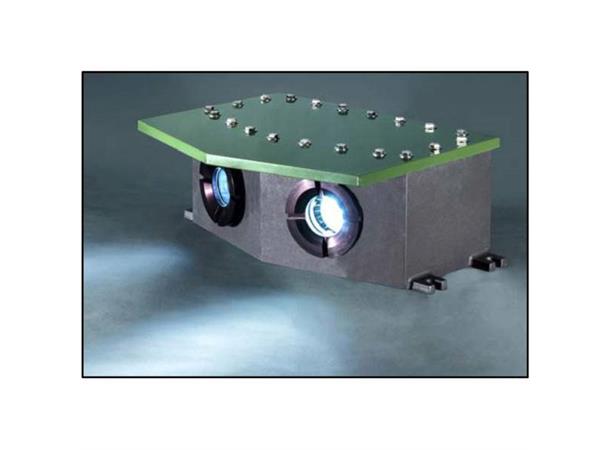

POINT SURFACE FLOODLIGHT PSF-AX
ATEX Zones 1 & 2 and IECEx
Compliances: IECEx Listed Ex d IIB T6 Gb Ta -55 to +55 °C IP66
ATEX Listed II 2 G Ex d IIB T6 Gb Ta -55 to +55-deg C 1P66
Registered ISO 9001:2008
ICAO Annex 14, Volume II
UK CAA CAP 437, Chapter 3, paragraph 3.5
American Bureau of Shipping (ABS) Type Approved Product
ABS Green Passport per MEPC179 (59)
International Maritime Organization (IMO) MODU Code 2001, para 13.5

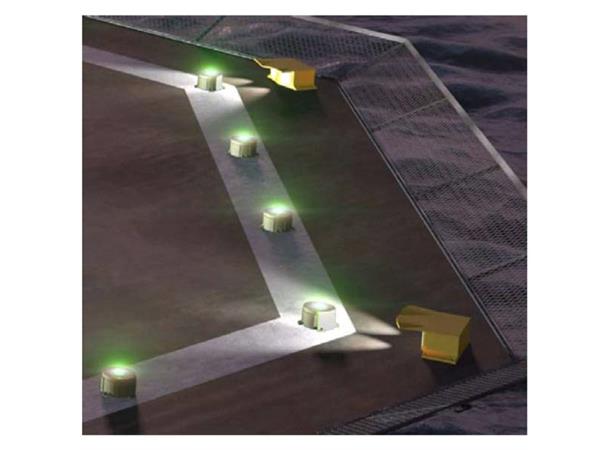

The PSF-53017-AX is a zones 1 & 2 medium intensity LED surface mounted helipad and helideck floodlight intended to 'wash' the pad with light.
The purpose of the PSF-AX is to provide cones of light washing the surface that provides improved conspicuity and depth perception to the pilot.
Marine Treatment of the cover and black anodizing of the body are included: The fixture shall be treated for manrine conditions by cleaning per US Department of Defense TTC-490 method Ill, pretreated with chrome-free aluminum conversion coating per US MIL-C-5541 type II, epoxy powder base coat primer and glossy polyester powder coat finish in color RAL 6003 (FED-STD-595 color #14097) dark green. Powder coating per US Department of
Defense MIL-PRF-24712A zype VI and oven cured.
Listed:
Baseefa 14ATEX0274
IECEx BAS 14.0130
Average Life (hours): 50,000
Peak Beam Intensity: 4,000 candelas
T-number: T6 at +55 °C
Operating: -55 °C to +55 °C
Frequency: 50/60 Hz
Ingress Rating: IP 66
Note: For aircraft safety, we recommend that this type of light be installed outside the markings of the landing surface defined FATO perimeter.
Weight: 48 lbs (22 kg)
Dimensions: 12.0 D 15.5W 6.6 H (D:305 x W:394 x H167 mm)
Bolt Pattern: Four (4) holes for 3/8-16 screws
Arranged on flanges spaced 45 x 165-inches
