POINT SURFACE FLOODLIGHT PSF-EX
CLASS I, DIVISIONS 1 & 2
PSF-53018-1-EX

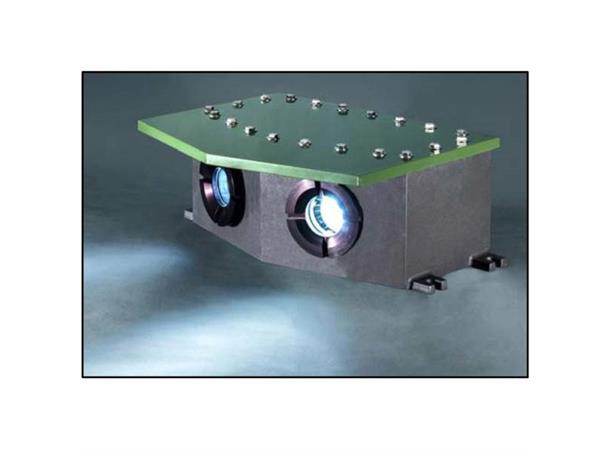

The PSF-53018-EX is a medium intensity LED surface mounted helipad and helideck floodlight intended to 'wash' the pad with light.

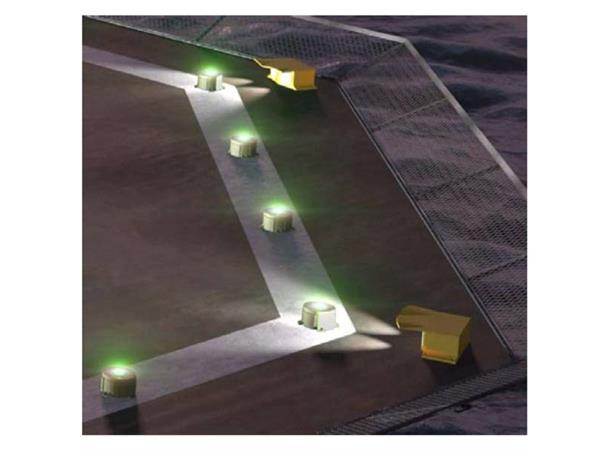

The purpose of the PSF-EX is to provide cones of light "washing" the surface that provides improved conspicuity and depth perception to the pilot.
Compliances:
ETL Listed Class I, Divisions 1 & 2, Groups C & D, T4 at 55-deg C
ETL Listed Class I, Zones 1 & 2, Groups IIA & IIB
ETL Listed per UL 50E, UL 844, UL 1598 & UL 1598A Marine Vessels
ETL Listed per CSA C22.2 No. 137-Ml 981 & No. 250.0-08 Canada
Registered ISO 9001:2008
ICAO Annex 14, Volume II
UK CAA CAP 437, Chapter 3, paragraph 3.5
American Bureau of Shipping (ABS) Type Approved Product
ABS Green Passport per MEPC1 79 (59)
International Maritime Organization (IMO) MODU Code 2001, para 13.5
Marine Treatment of the cover and black anodizing of the body are included: The fixture shall be treated for marine conditions by cleaning per US Department of Defense TTC-490 method 114 pretreated with chrome-free aluminum conversion coating per US MIL-C-5541 lype II, epoxy powder base coat piimer and glossy polyester powder coat finish in color RAL 6003 (FED-STD-595 color #14097) dark green. Powder coating per US Department of Defense MIL-PRF-24712A type VI and oven cured.
Lamp Life (hours): 50,000 LED
Peak Beam Intensity: 4,000 candelas
T-number: T4 (135 deg C)
T ambient: +55 deg C
Operating: -55 deg C to +55 deg C
Frequency: 50/60 Hz
Ingress Rating: IP 66
All external hardware is grade 316 (A4) stainless steel.
Metal castings are copper-free (<0.2%) heat treated aluminum.
