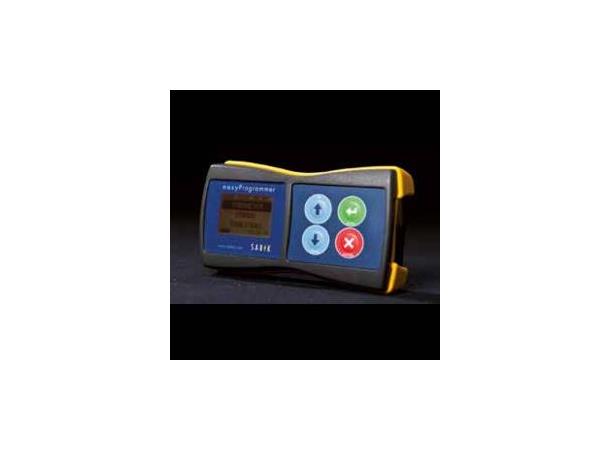

Sabik Easy Programmer
• User friendly and compact in size
• Integrated infrared port
• Two-way communication
• Lantern data can be downloaded to a PC
The LED 155 is a general purpose LED lantern commonly used on both fixed and floating structures. The lantern is modular in design. It can be configured with two different vertical divergencies and 1-3 tiers (Simpex, Duplex or Triplex) depending on operational requirements.
- Range up to 8 nm at Tc = 0.74 (12 nm at Tc = 0.85)
- Standard IALA colours Red, Green, White, Yellow and Blue/Yellow
- Rugged aluminium housing for installation in harsh marine environment
- Extremely low power consumption, suitable for solar and battery operation Integrated flasher with day-night switch
- Integrated 16a solar panel charger using pulse width modulation
- Adjustable intensity and range
- Available with narrow (6°) or wide (10°) vertical divergence
- Programming with any of Sabik wireless programmers
- Integrated event log for 365 days
- Optionally integrated GPS synchronization
- Optionally integrated GSM Remote monitoring
Main Technical Specification LED 155
Lens visual/Mechanical diameter: 160 mm
Lens material: UV stabilized Polycarbonate
Light source: Light Emitting Diodes (LEDs)
Vertical divergence: 6° or 10° @ 50% (±1°) and 10° or 20° @ 10% (±2°) of peak intensity
Unit lifetime: Up to 10 years
Weight: 3,9 kg for single tier unit
Temperature range: -40°…+60°C
Supply Voltage: 8 – 30 VDC
Solar Panel Charger: 16 ampere PWM charger
Power consumption: 6 watts / tier
Degree of protection: IP68
* See the attached UserManual under Links/Lenker (below the product image)!
See also the attached example Film - how to program THE PHOTOCELL from AUTO to FORCED NIGHT (on 24/7)
