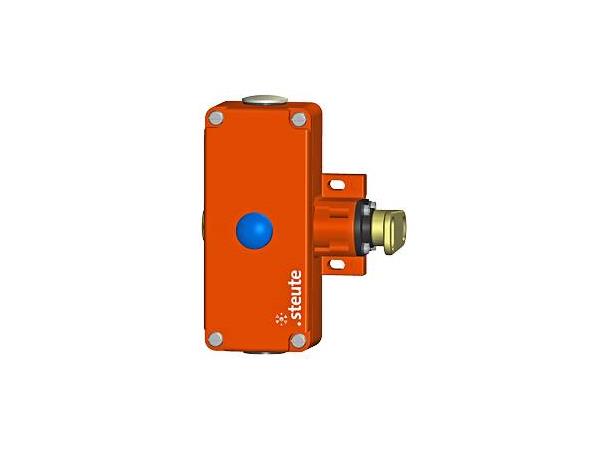

Emergency pull-wire switch
ZS 75 S 2Ö/2S VD IP67 -40°C Extreme
Material number: 1183405
(Material number old: 75430923)
Features/Options
• Cold-resistant down to -40 °C
• High degree of protection IP 67
• Metal enclosure
• 4 contacts
• Wire length up to 2 x 100 m
• Release by push-button (VD)
• Wire pull and breakage detection
Technical data
Standards: EN 60947-5-1, -5; EN ISO 13850; EN ISO 13849-1
Enclosure: aluminium die-cast, enamel finish
Cover: aluminium die-cast, enamel finish
Degree of protection: IP 67 to IEC/EN 60529
Contact material: silver
Switching elements: 2 NC/2 NO contacts with double break
Switching system: snap action, positive break NC contacts
Connection: screw connection terminals
Cable cross-section: max. 2.5 mm² (incl. conductor ferrules)
Cable entry: 2 x M25 x 1.5
B10d (10 % Load): 200 000
TM: max. 20 years
Uimp: 6 kV
Ui: 400 V
Ithe: 6 A
Utilisation category: AC-15
Ie/Ue: 6 A/400 VAC
Max. fuse rating: 6 A gG/gN fuse
Ambient temperature: –40 °C … +70 °C
Mechanical life: > 100 000 operations
Max. wire length: 2 x 100 m
Features: wire pull and breakage detection
Weight: 1000 g
