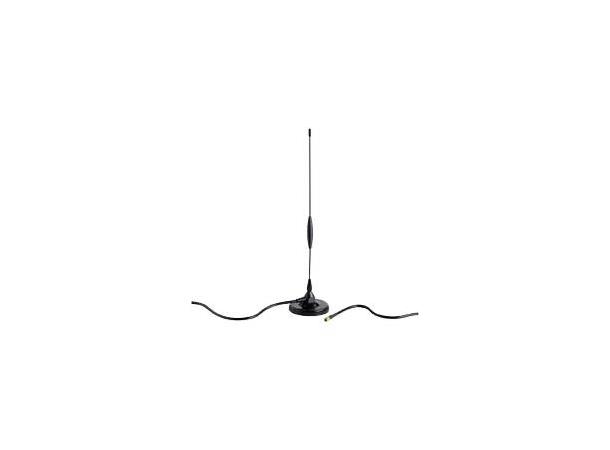

RF Magnet antenna SW868 1.5 m 5db
Accessories for Wireless products
Material number: 1188958
Features/Options:
* RF magnet antenna with straight SMA plug-in connector without ferrite core
* Cable length 1.5 m
* Ordering unit: 1 piece
Technical data:
Frequency: 824 - 960 MHz, 1.8 GHz / 1.9 GHz
Type: Magnet foot antenna
Impedance 50 Ohm
Gain: 5 dB
Colour: black
Dimensions: Ø foot 77 mm, high approx. 660 mm
Cable: 1.5 m RG58
Connector: SMA (male)
Weight: 317 g
Note: The antenna must be mounted on a metal plate of min. 250 x 250 mm size.
