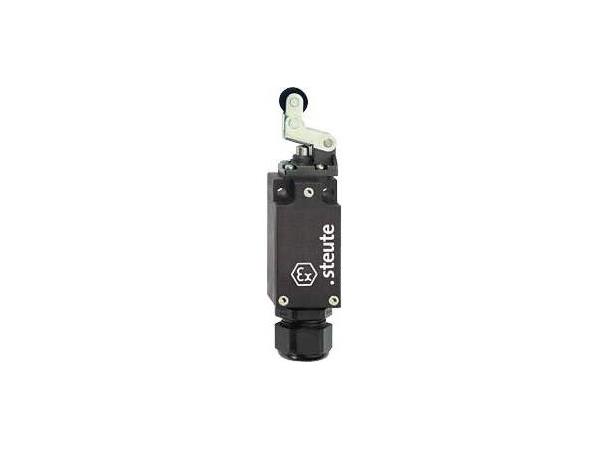

Ex 95 WHKM 1NC/1NO IP 66
Ex position switch with safety function
Material number: 1395172
Features/Options
• Ex zone 1 and 21
• Thermoplastic enclosure
• Design to EN 50047
• Slow action, change-over contact with double break
• Wiring compartment
• Double insulated
• Actuator: Offset metal roller lever with collar WHKM
• Niro screws, Niro axes and metal roller lever DURNI-coated
• Actuating speed max. 0.5 m/s with a vertical actuating angle of 40°
• Watertight collar for protection against penetration of dirt
• Wear-resistant plastic roller
• Actuator can be repositioned by 4 x 90°
• Actuation only possible from right-hand side
• Free movement of actuator from left-hand side
• N.B.: Please state required approvals for Russia, China and North America with your order!
Note
• With metal roller available on request
