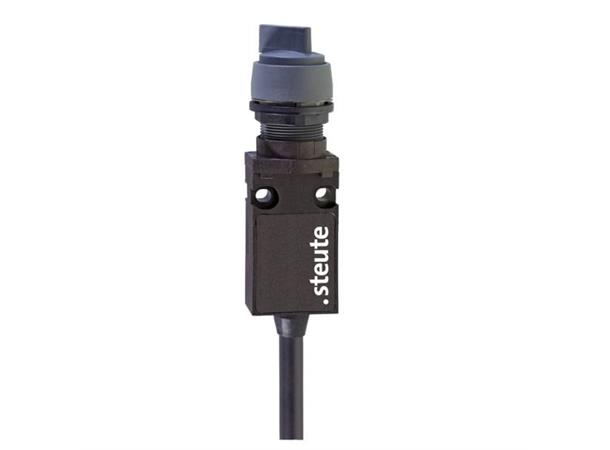

Command device
ES 14 RSTA 0 <- I 1m
- Slow action
- 1NC/1NO change over contact
- Control switch RSTA
- Switching angle 90° with return to left position
- Cable 1 meter
Features/Options
- RST with spring return
- Available i 2 different versions
- Thermoplastic enclosure
- Double insulated
- Slow action , change-over contact or 2 NC contacts with double break
- Overlapping contacts available
- Mounting hole diameter 22.5 mm
- Mounting details to DIN EN 50 047
- With pre-wired cable
- With gold-plated contacts available on request
- With connector M12 x 1, 4-pole available on request
- Version with cable on side available on request
- Ex-version available
