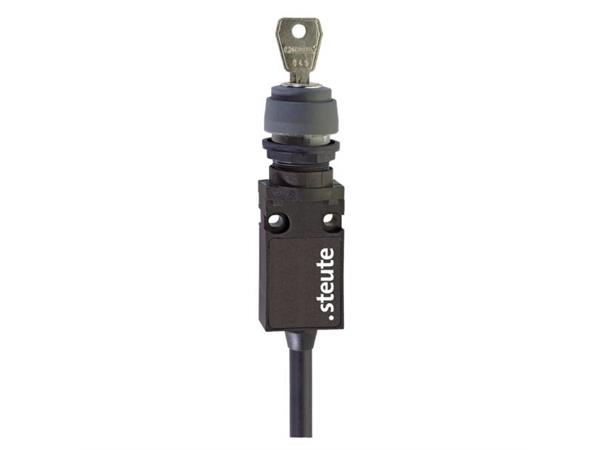

Command device
ES 14 RSSA 15 1m
- Slow action
- 1NC/1NO change over contact
- Key switch RSSA 15
- 2 switching positions
- Cable 1 meter
Features/Options
- Thermoplastic enclosure
- Double insulated
- Slow action , change-over contact or 2 NC contacts with double break
- Overlapping contacts available
- Mounting hole diameter 22.5 mm
- Mounting details to DIN EN 50 047
- With pre-wired cable
- With gold-plated contacts available on request
- With connector M12 x 1, 4-pole available on request
- Version with cable on side available on request
- Ex-version available
- RSSA key switch with safety cylinder lock (locks against turning)
- Normal version always has same key number
- Available in 9 different versions
- Up to 20 lock combinations available on request
