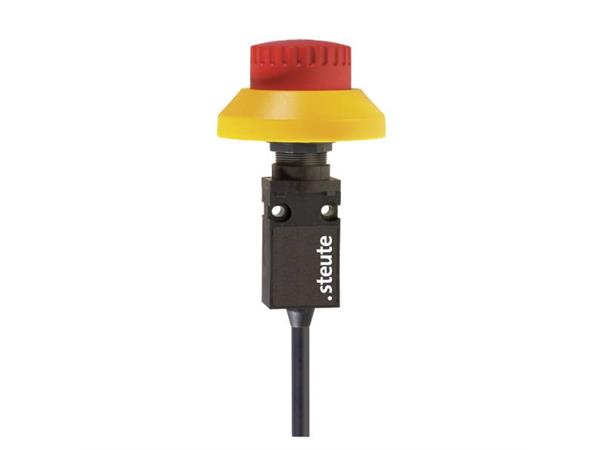

Command device
ES 14 RUV 1m
- Slow action
- 1NC/1NO change over contact
- Emergency stop push button RUV
- Cable 1 meter
- Thermoplastic actuator
- To EN 418
- Projection from front of panel 41 mm
- With collar to prevent blocking
- Reset by turning clockwise
- With pressure-point to protect against unintentional actuation
Features/Options
- Thermoplastic enclosure
- Double insulated
- Slow action , change-over contact or 2 NC contacts with double break
- Overlapping contacts available
- Mounting hole diameter 22.5 mm
- Mounting details to DIN EN 50 047
- With pre-wired cable
- With gold-plated contacts available on request
- With connector M12 x 1, 4-pole available on request
- Version with cable on side available on request
- Ex-version available
