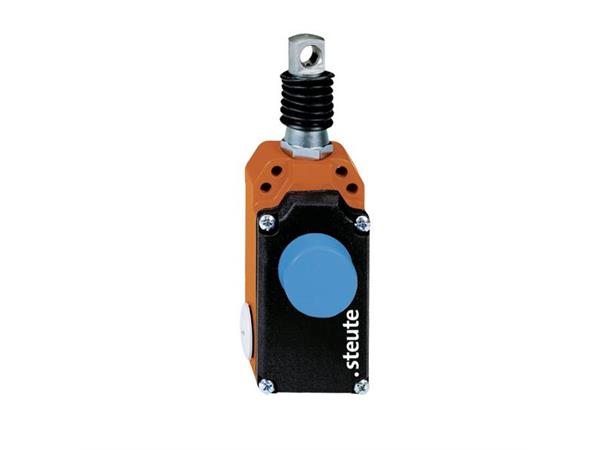

Emergency pull-wire switch
ZS 71 WVD 200N
- Watertight collar W
- Release by push button VD
- One-side actuation
- 200 N for 5-20 m wire
- 2NC/1NO
Features/Options
- Metal enclosure
- 2 contacts
- Small design
- Wire length up to 20 m
- 2 various spring force variants (actuating forces):
- 55 N for max. 5 m
- 200 N for 5-20 m - Release by push button (VD) or key (VS) possible
- Wire pull and breakage function
- Position indicator A not available for variant ZS 71 NA
- Indicator lamp position in the left side cable entry
- Watertight collar W to protect against the entry of foreign bodies available
- Version with emergency-stop push button available for direct and fast actuation at the switch
- Emergency-pull-wire switches are also available without mechanical latching but not the variant with emergency-stop push button
- AS-Interface Safety at Work available
- Ex version available
- Version with higher degree of protection IP 69K available
