Radio Receiver RF Rx EN868-1-NPN 24vDC
Features/Options
- EnOcean standard
- 1-channel: semicontuctor output
- NPN output
- Transmitter/receiver assignment by teaching mode
- LEDs for indication of switching state

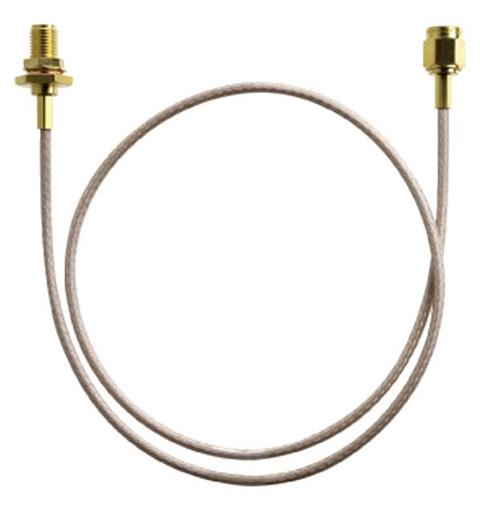

- SMA plug-in connector for external antenna
Technical Data
| Manufacturer: | Steute |
| Number of channels: | 1 |
| Mounting: | DIN rail mounting |
| Screw terminals: | terminals with CAGE CLAMP
WAGO Serie 236:
0.08 ... 2.5 mm²
AWG 28–14 (incl. conductor ferrules) |
| Degree of protection: | IP 20 per IEC/EN 60529 |
| Inputs: | 1 radio channel, max. 10 transmitters per channel |
| Outputs: | NPN (transistor) |
| Operating current Ie: | Input: max. 0.08 A; output: 0.2 A |
| Operating voltage Ue: | Input: 24 VDC -15% … +10%; output: UB-2.5 VDC |
| Ie/Ue of output contacts: | 6A / 250 VAC; 2A / 24 VDC |
| Ambient tempereature: | 0°C ... +55°C |
