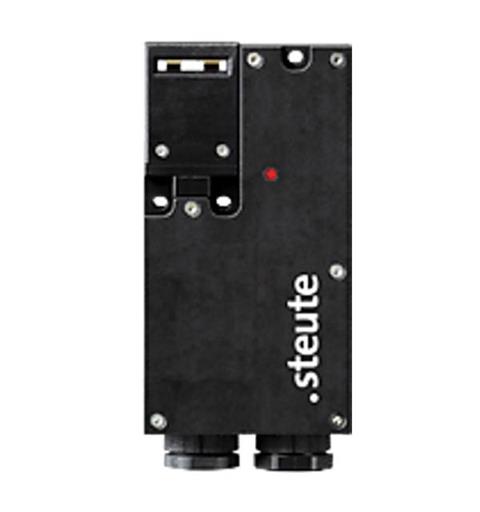

Solenoid interlock
STM 295 R FE
- 2NC/2NO
- R Spring-to-lock
- Rated operating current/voltage magnet:
0.08 A/24 VDC +10 % / -15 % - With auxiliary unlocking for service, maintenance, etc.

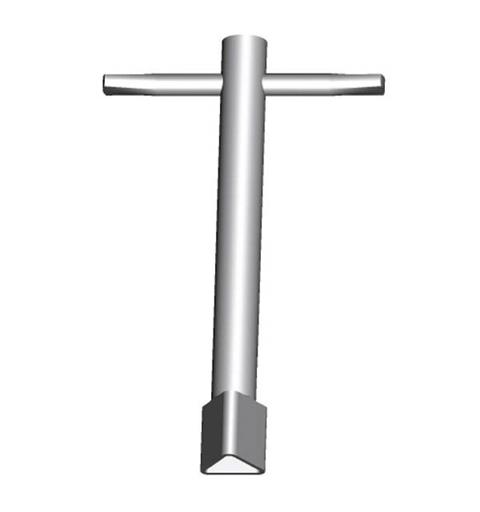

- Unlocking with M5 triangular key
Features/Options
- Thermoplastic enclosure
- Double insulated
- Spring-to-lock or Power-to-lock principle
- Holding force 1000 N
- Wiring compartment
NOTE

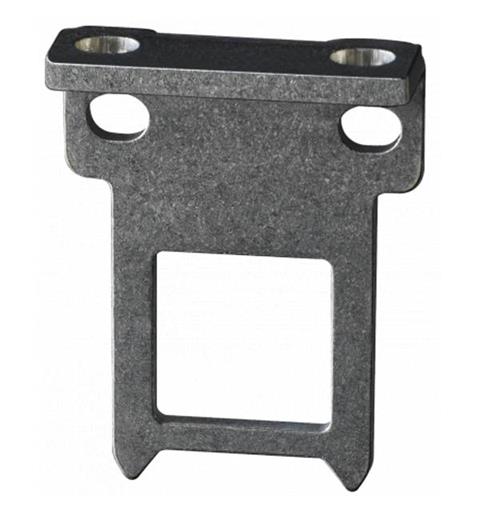

The actuator is not included with the switches.
The DataSheet is the same as 95353002, temporary
