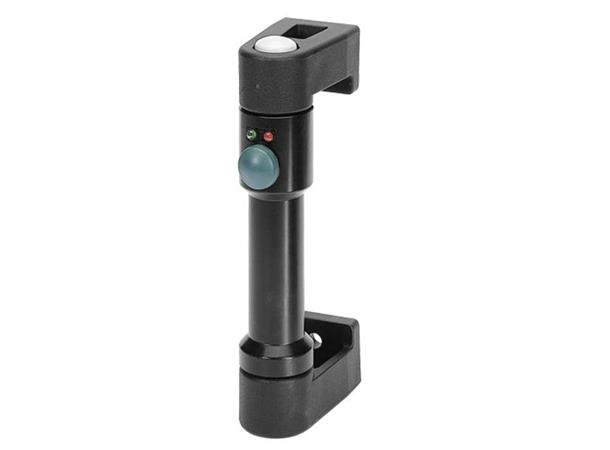

Door handle switch TG-W GR x S

IP65 (1NO/1CO)

Varenr: 97755904

Beskrivelse

Technical data:

Applied standards	EN 60947-5-1
Enclosure	POM, glass-fibre reinforced, impact resistant
Degree of protection	IP 65 to IEC/EN 60529
Connection	Plug-in connector, A-coded
Rated operating current/voltage Ie/Ue	0.6 A/28 VDC
LEDs	10 mA/24 VDC
Rated insulation voltage Ui	30 VDC
Rated switching capacity	max. 0.6 W
Degree of pollution	3
Mechanical life	> 1 million operations
Ambient temperature	–25 °C … +55 °C
Weight	340 g
