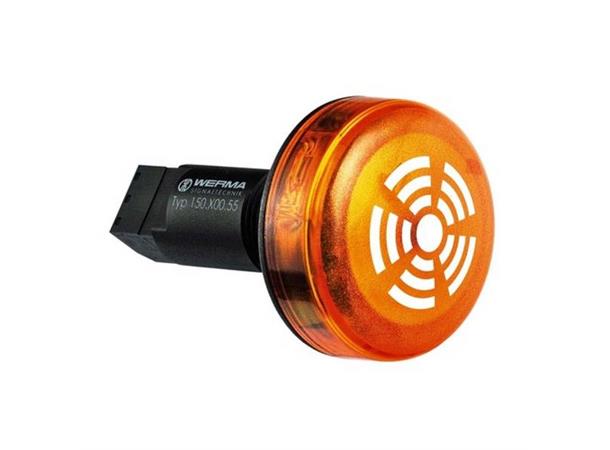

LED/Buzzer Combination type 150
• LED Permanent light
• Continuous tone can be additionally activated
• Simple connection by means of connector plug
• Life duration up to 50,000 hrs
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 50 mm x 22 mm (Protrusion from panel)
Housing: PC/ABS-Blend
Lens: PC, transparent
Connection: Connector plug with screw terminal max. 1.5 mm2
Tone type: Continuous
Tone frequency: c. 2.8 kHz
Duty cycle: 100 %
Life duration: Up to 50,000 hrs (LED)
Fixing: Installation mounting for Ø 22.5 mm (M 22 x 1.5 mm) with anti-twist device
Nut and seal included in assembly.
