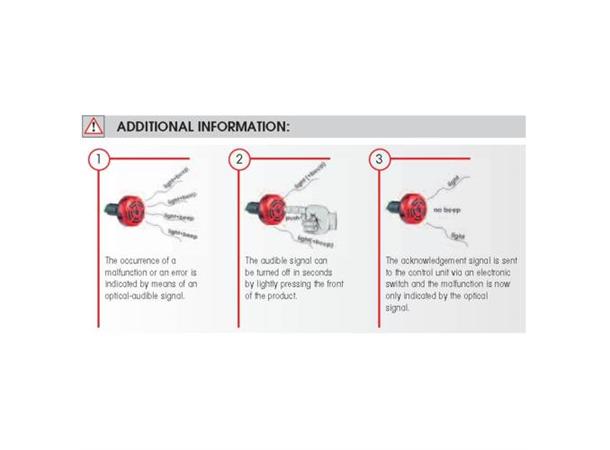

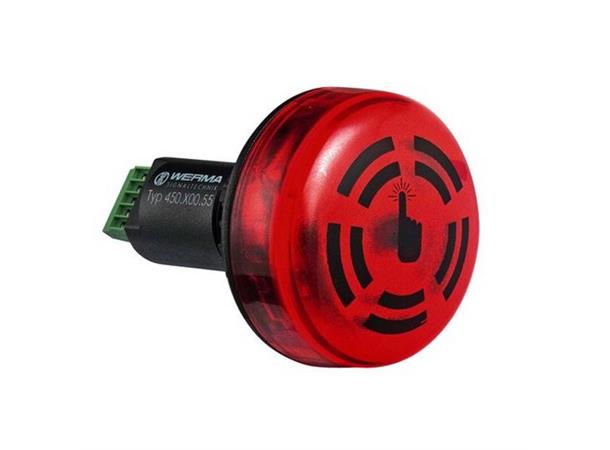

LED/Buzzer Combination with acknowledgement function- continous tone
| Order number: | 450.100.55 |
| Interface: | plug-in connection with screwable connection max. 1.5 mm² finely stranded |
| Fixing: | Installation mounting |
| Starting current: | max. 500 mA |
| Color: | red |
| Sound output: | 80dB |
| Life duration: | 50,000 h (audible: min. 5,000 h) |
| Dimension in mm: | ø 49,5 x 80 |
| Protection rating: | IP65 |
| Voltage: | 24V |
| Voltage type: | DC |
| Current consumption: | max. 80 mA |
| Temperature range: | -20°C...+50 °C |
| Tone type: | Contin. tone |
| Tone frequency: | ca. 2,8 kHz |
| Housing: | PC/ABS-Blend |
| Type of signal: | LED Permanent |
