Ex Electr. Buzzer EM Contin. tone
Order number: 718.000.55
- Intrinsically safe Ex installation buzzer for Zone 1 and 2 (EEx ib - not for zone 0)
- For use with a Zener Barrier

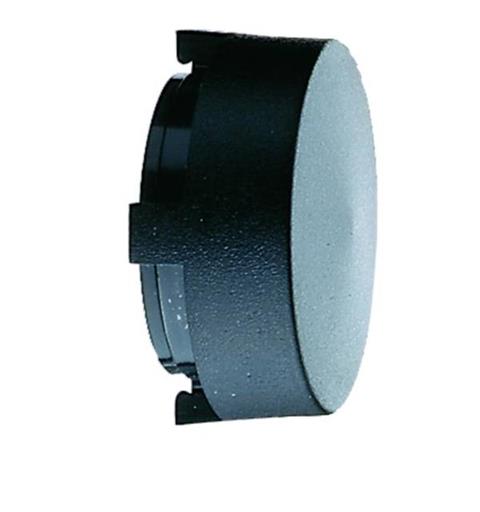

- IP 43 with cap (type 975.118.00)
- Low current consumption
- Continuous tone
Interface: spade terminal 6.3 mm x 0.8 mm (2-pole)
Fixing: Installation mounting
Color: grey
Life duration: min. 5.000 h
Dimension in mm: ø 43 x 48
Protection rating: IP30
Voltage: 24V
Voltage type: DC
Current consumption: 20 mA
Temperature range: -20°C...+60°C
Housing: ABS
Protection ignition: II 2G EEx ib IIC T4 / T5 / T6
Approvals: DMT 98 ATEX E 005 X
------------------------------------------------
int.ref.#: 16473
