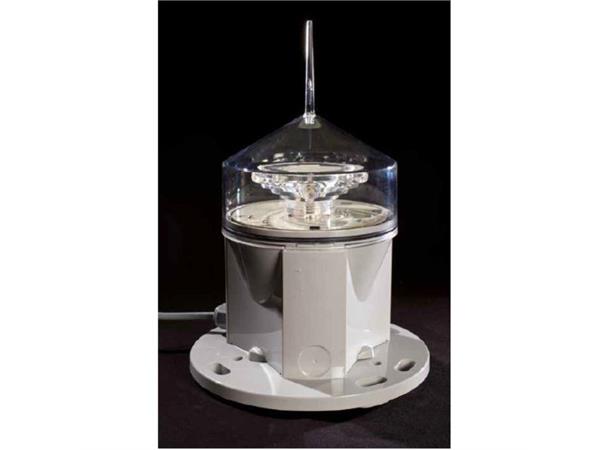

Marine Lantern LED 110
(without GPS!!)
| | |
 |  |
| Note: Discontinued item! | NB: Utgåtte vare! |
| |
| Alternativt produkt: M-840 eller VLB5X-SA | |
Marine LED light for buoys and small beacons
Marine Lantern LED 110 is a maintenance free short range LED lantern. Using latest high power LEDs, Sabik intelligent electronics and our specially designed efficient optics, we have been able to achieve an excellent performance for the lantern. LED 110 is produced of polycarbonate for durability and low weight.
Marine Lantern LED 110 features:
- Range 4 NM at Tc = 0,74 (5 NM at Tc = 0.85)
- Standard IALA colours red, green, white and yellow
- Produced of durable polycarbonate plastic
- Integrated flasher with day light switch and a ampere solar panel charger
- Internal calendar; light can be switched off for winter
- Adjustable intensity and range
- Vertical divergence 8° @ 50 % (±1°) of peak intensity
- Programming with a wireless Sabik PDA Programmer or with a PC/USB interface
- Integrated event log (Black box function) for 365 days
- Optionally integrated GPS synchronization
- Optionally integrated GSM remote monitoring
| Maximum fixed intensity: | |
| LED 110 Red: | 40 cd |
| LED 110 Green: | 40 cd |
| LED 110 White: | 50 cd |
| LED 110 Yellow: | 50 cd |
| | |
| Main Technical Specification: | |
| Lens visual/Mechanical diameter: | 166 mm |
| Lens material: | UV stabilized Polycarbonate |
| Body material: | UV stabilized Polycarbonate |
| Light source: | High Power Light Emitting Diode |
| (LED) |
| Vertical divergence: | 8° @ 50% (±1°) of peak intensity |
| Unit lifetime: | Up to 10 years |
| Weight: | 2 kg |
| Temperature range: | -40°C to +60°C |
| Degree of protection: | IP 67 |
| Supply Voltage: | 9 – 30 vDC |
| Power consumption: | Max 1,3 watt |
| | |
