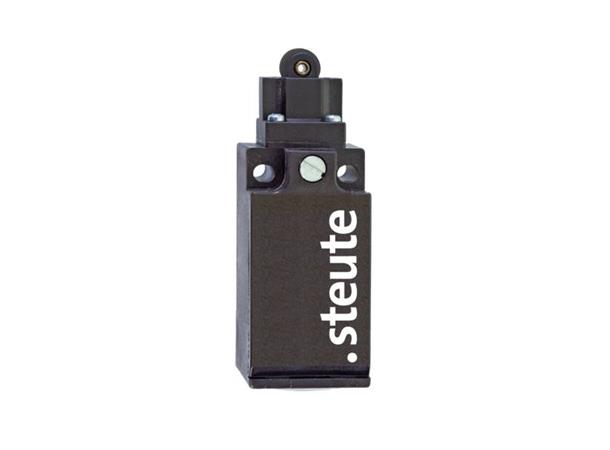

Position switch with safety function
ES 95 R 1Ö/1S (1NC/1NO)
Material number: 1049925 (Material number (old): 95009001)
Features/Options
* Thermoplastic enclosure
* Horizontally slotted mounting holes
* Double insulated X
* Slow action A, change-over contact with double break
* Good resistance to oil and petroleum spirit
* Actuator: Roller plunger R
* Actuator type C to EN 50047
* Wear-resistant plastic roller
* Actuator can be repositioned by 4 x 90°
Note: With metal roller available on request
Technical data
Standards: EN ISO 13849-1; EN 60947-5-1;EN 1088; BG-GS-ET-15
Design: DIN EN 50 047
Enclosure: glass-fibre reinforced, shock-proof thermoplastic, self-extinguishing UL 94-V0
Degree of protection: IP 67 to IEC/EN 60529
Contact material: silver
Switching system: slow action, positive break; NC contacts A to EN 60947-5-1
Switching elements: change-over contact with double break Zb, galvanically separated contact bridges
Connection: plug-in connector
Cable cross-section: max. 2.5 mm² (incl. conductor ferrules)
Cable entry: 1 x M20 x 1.5
B10d (10 % Load): 2 million
TM: max. 20 years
Uimp: 4 kV
Ui: 400 V
Ithe: 6 A
Utilisation category: AC-15; DC-13
Ie/Ue: 6 A/400 VAC; 0.25 A/230 VDC
Max. fuse rating: 6 A gG/gN fuse
Mechanical life: > 1 million operations
Frequency of operation: 1800/h
Ambient temperature: –20 °C … +80 °C
Contact gap: 2 x 3.5 mm
